Other parts on the same Hayward Navigator Pro Cleaner

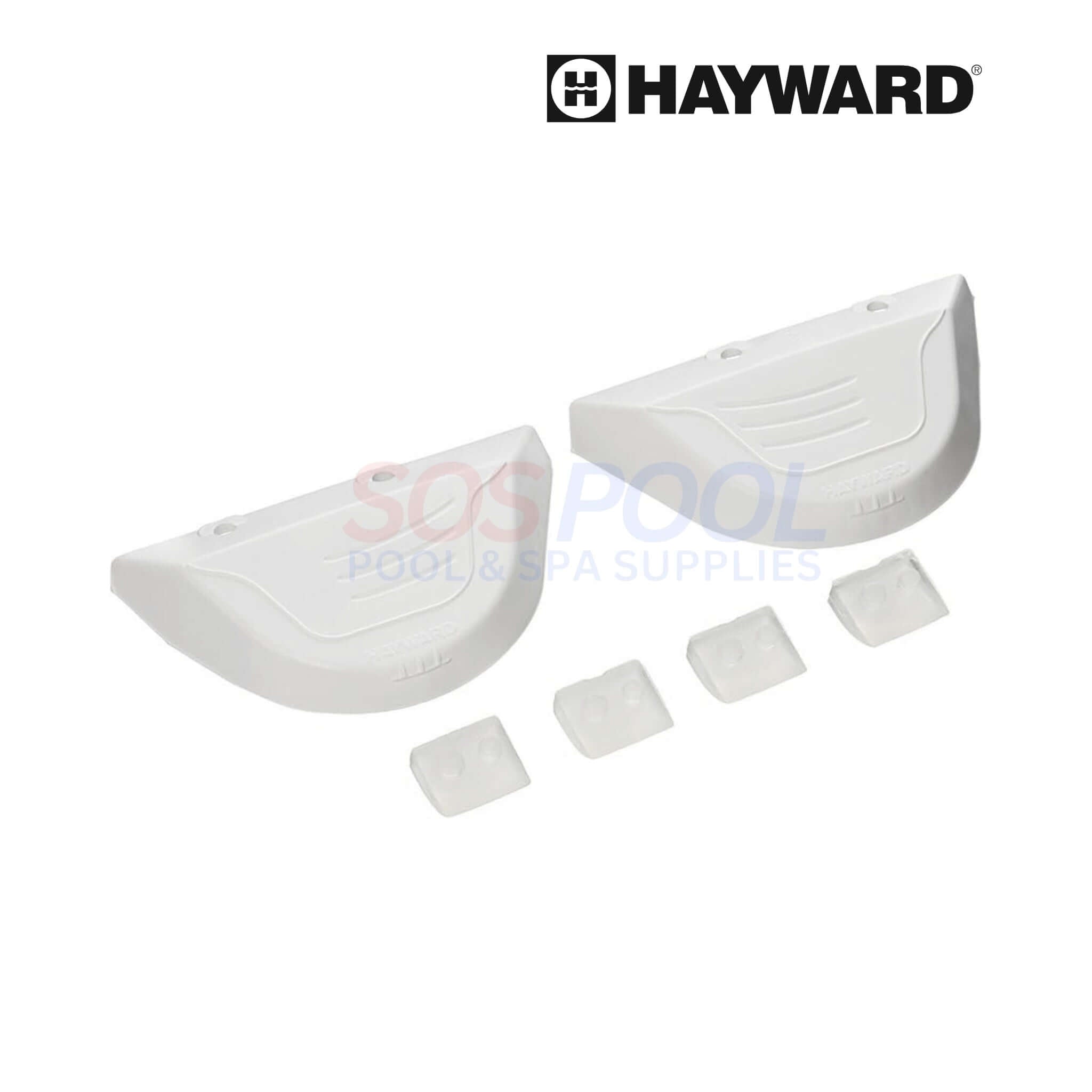

The OEM Hayward AXV414604WHP Shoe and Wing Maintenance Kit is designed for Hayward Navigator and Pool Vac automatic pool cleaners. This kit contains replacement wings and shoes, essential for ensuring that your cleaner operates efficiently by maintaining its traction and movement across pool surfaces. It is compatible with both concrete and vinyl pools and helps restore the performance of the pool cleaner, ensuring smooth operation and effective debris collection. The parts are easy to install and are built to extend the life of your pool cleaner.
-
Ensures Efficient Cleaner Operation: The Hayward AXV414604WHP Shoe and Wing Maintenance Kit includes replacement wings and shoes, essential for maintaining the traction and movement of Hayward Navigator and Pool Vac automatic pool cleaners.
-
Compatible with Concrete and Vinyl Pools: Designed for versatility, this kit works with both concrete and vinyl pools, ensuring smooth operation and effective debris collection in various pool environments.
-
Restores Cleaner Performance: By replacing worn parts, the kit helps restore your pool cleaner's performance, ensuring it continues to operate smoothly and efficiently for optimal pool cleaning.
-
Easy to Install and Durable: The replacement parts in this kit are easy to install and made from durable materials, extending the life of your pool cleaner and ensuring consistent operation.

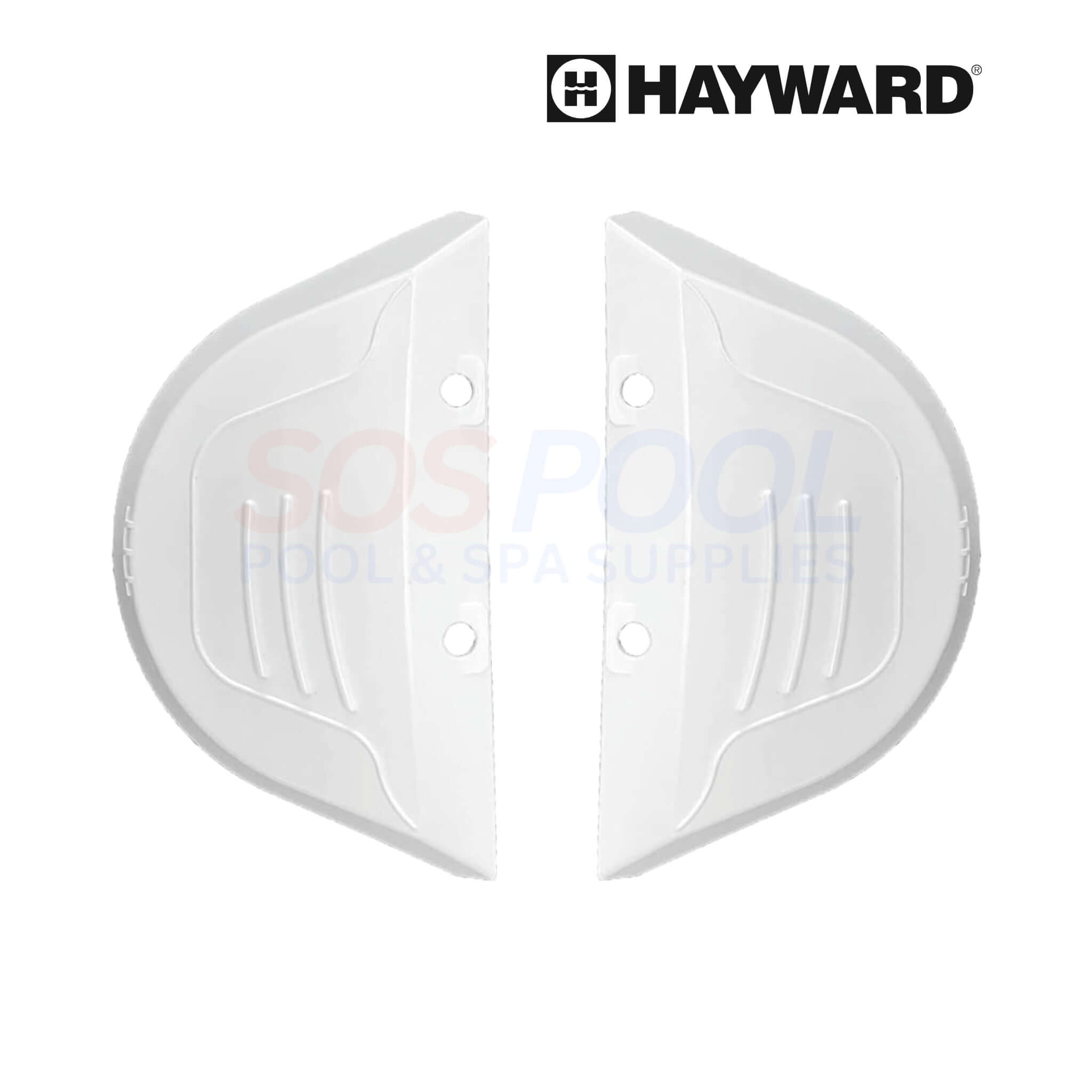

- (2) Wings

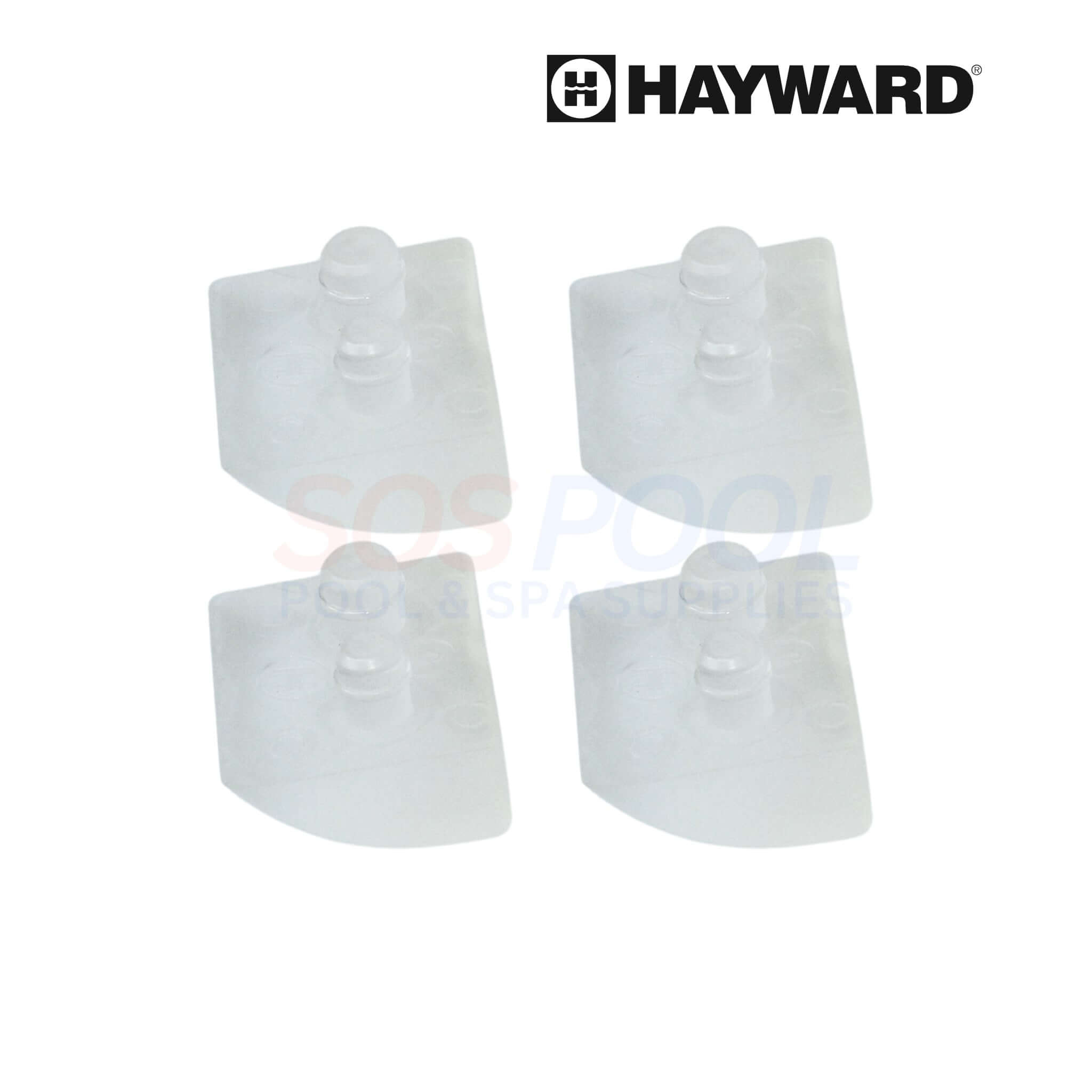

- (4) Shoes
- Hayward Navigator Automatic Cleaners
- Hayward Pool Vac Automatic Cleaners
