Hayward ProGrid Complete Element Cluster | 60 Sq. ft | DEX6000DC
Fits these models (2)
Shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 37 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

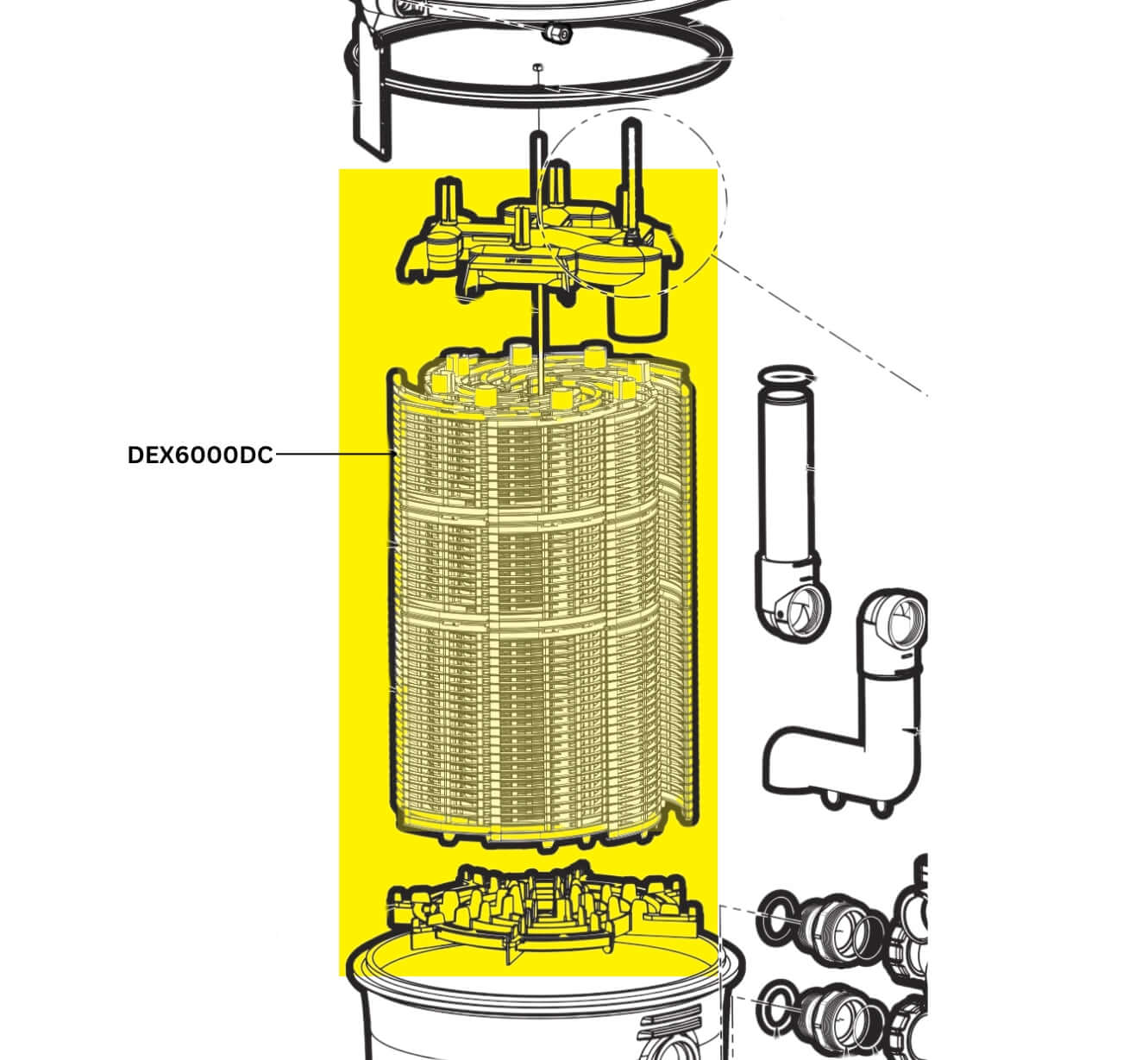

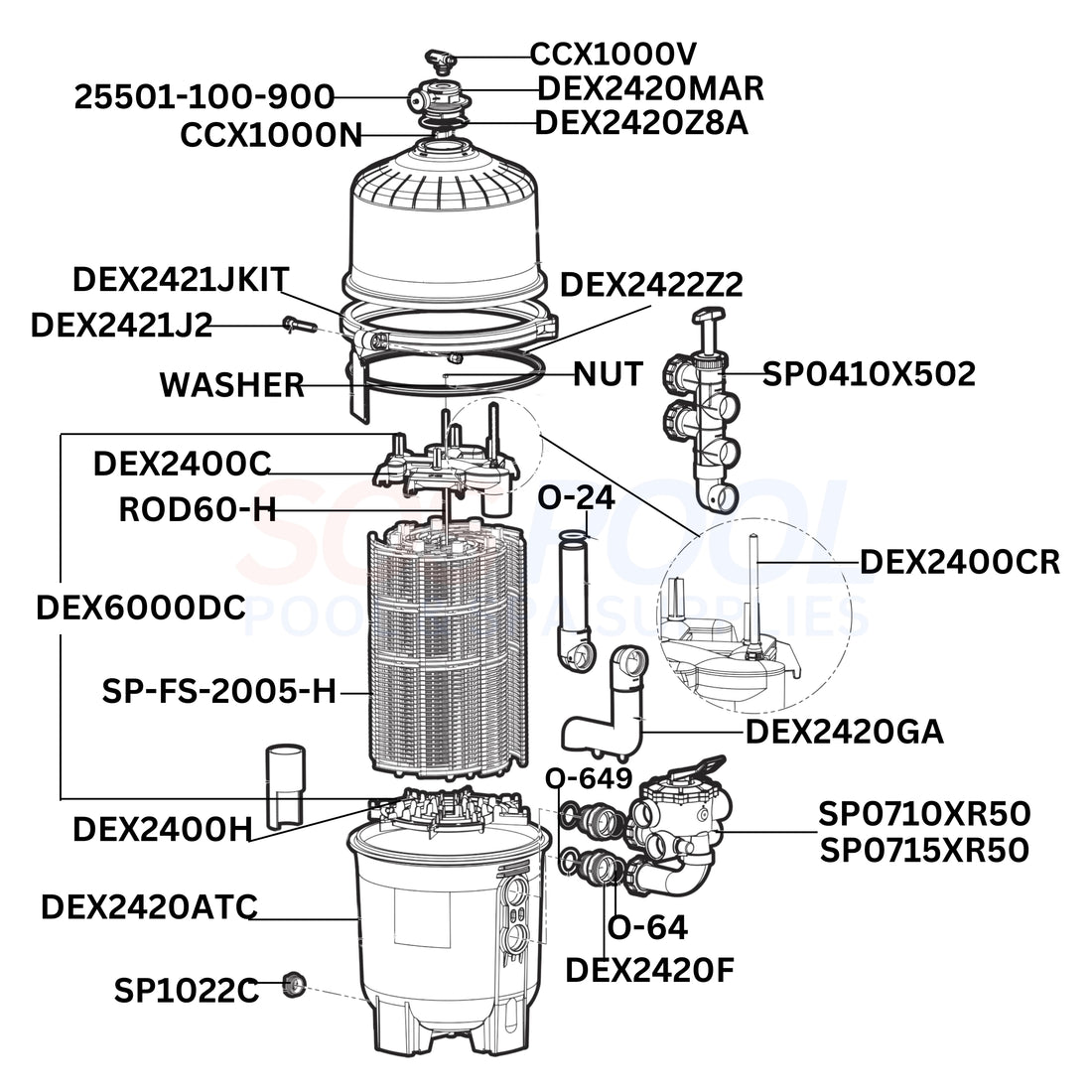

On the Hayward ProGrid DE6020 Filter diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward ProGrid DE6020 Filter

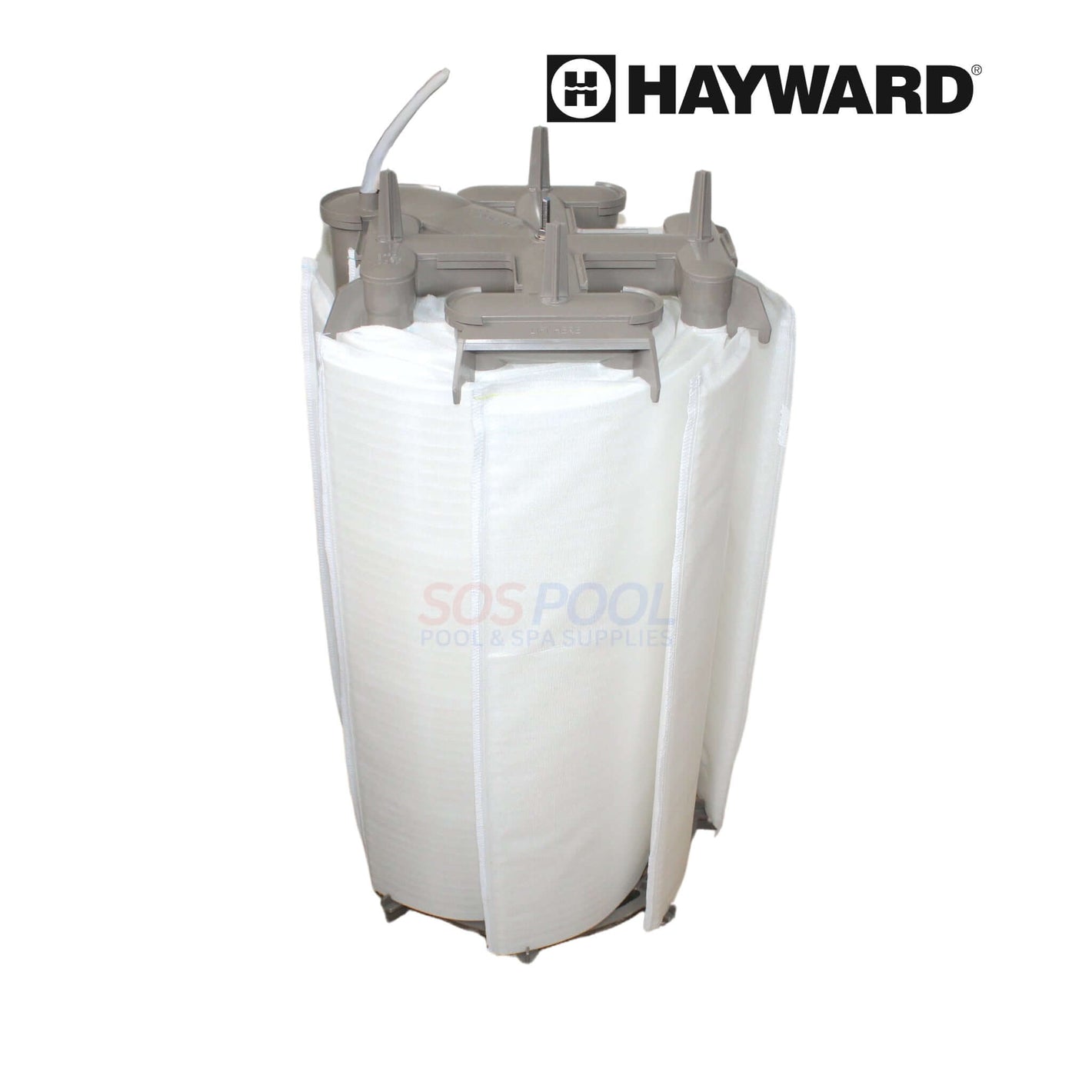

The Hayward DEX6000DC Complete Element Grid Cluster is a replacement designed for use with Hayward Pro-Grid DE6020 and MicroClear DE6000 filters. It delivers 60 square feet of filtration capacity and comes pre-assembled with eight DE grids, a top and bottom manifold, flex air relief, retainer rod, and element locator. Built with durable polypropylene-covered grids and impact-resistant framing, it ensures reliable debris capture and long-term performance. This cluster assembly simplifies routine maintenance by allowing quick, full replacement of internal filter elements to restore maximum efficiency.
-
OEM Assembly for DE6020 & DE6000 Filters: Designed to fit Hayward Pro-Grid DE6020 and MicroClear DE6000 models for a seamless replacement.
-
Complete Grid Cluster Included: Features eight DE grids, top and bottom manifolds, flex air relief, retainer rod, and element locator—pre-assembled for convenience.
-
60 Sq Ft of Filtration Area: Offers effective debris capture and consistent water clarity across a wide surface area.
-
Built for Long-Term Durability: Grids are made with high-impact styrene frames and wrapped in multi-filament polypropylene fabric for strength and longevity.
-
Streamlines Filter Maintenance: Simplifies grid replacement and reduces downtime by allowing easy installation of the entire internal assembly.
This complete assembly comes pre-assembled and ready to install.
- (7) Large 30", 60 Square Foot Grids
- (1) Small 30", 60 Square Foot Grid
- (1) Top Collector Manifold: DEX2400C
- (1) Retainer Rod: DEX6000R
- (1) Retainer Nut: ECX176865
- (2) Washer: ECX1109
- (1) Filter Element Locator: DEX2400H
- (1) Flex Air Relief Assembly: DEX2400CR
- Hayward Pro-Grid 60 sq. ft DE Filters: DE6020
