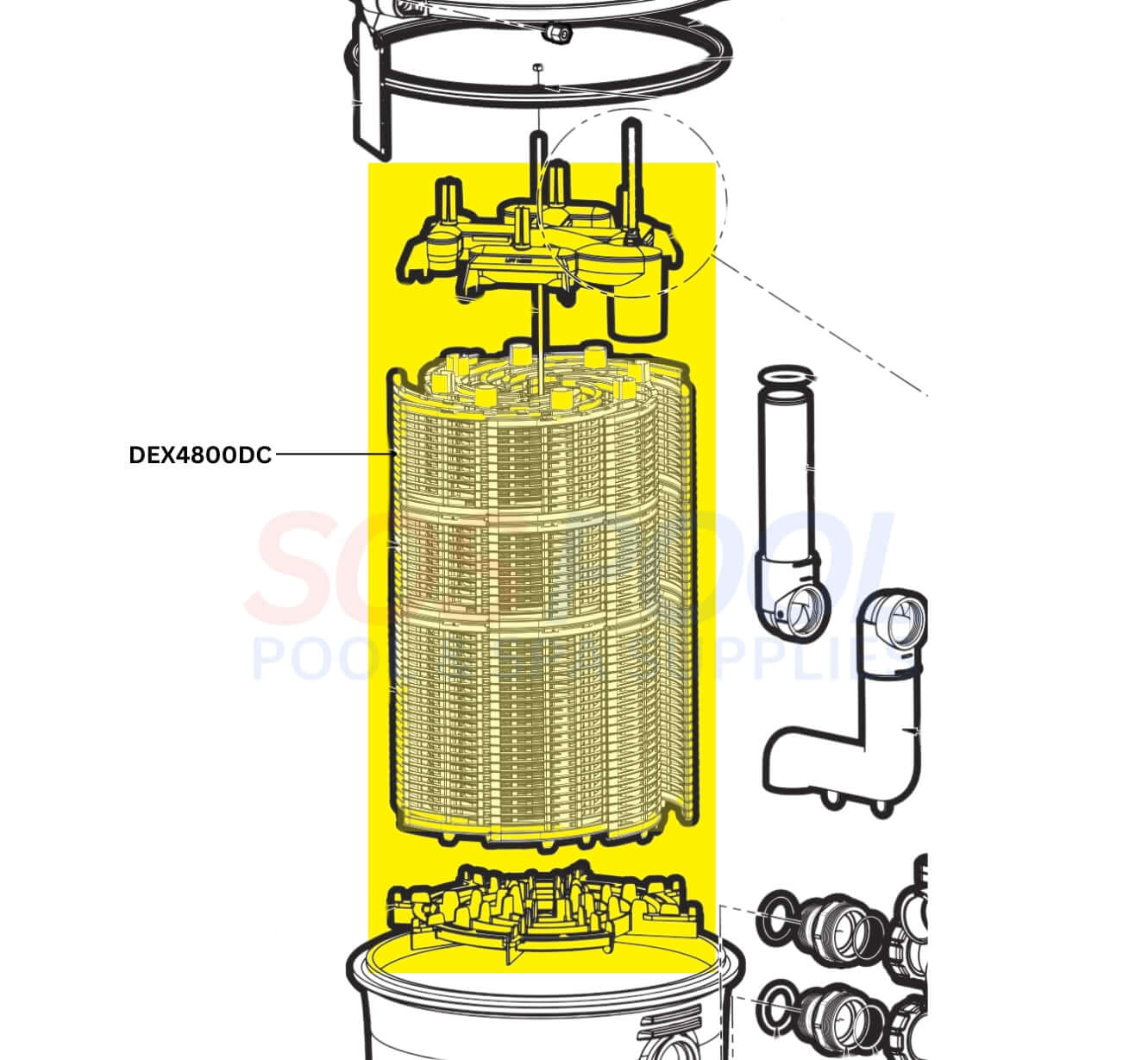

On the Hayward ProGrid DE4820 Filter diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward ProGrid DE4820 Filter

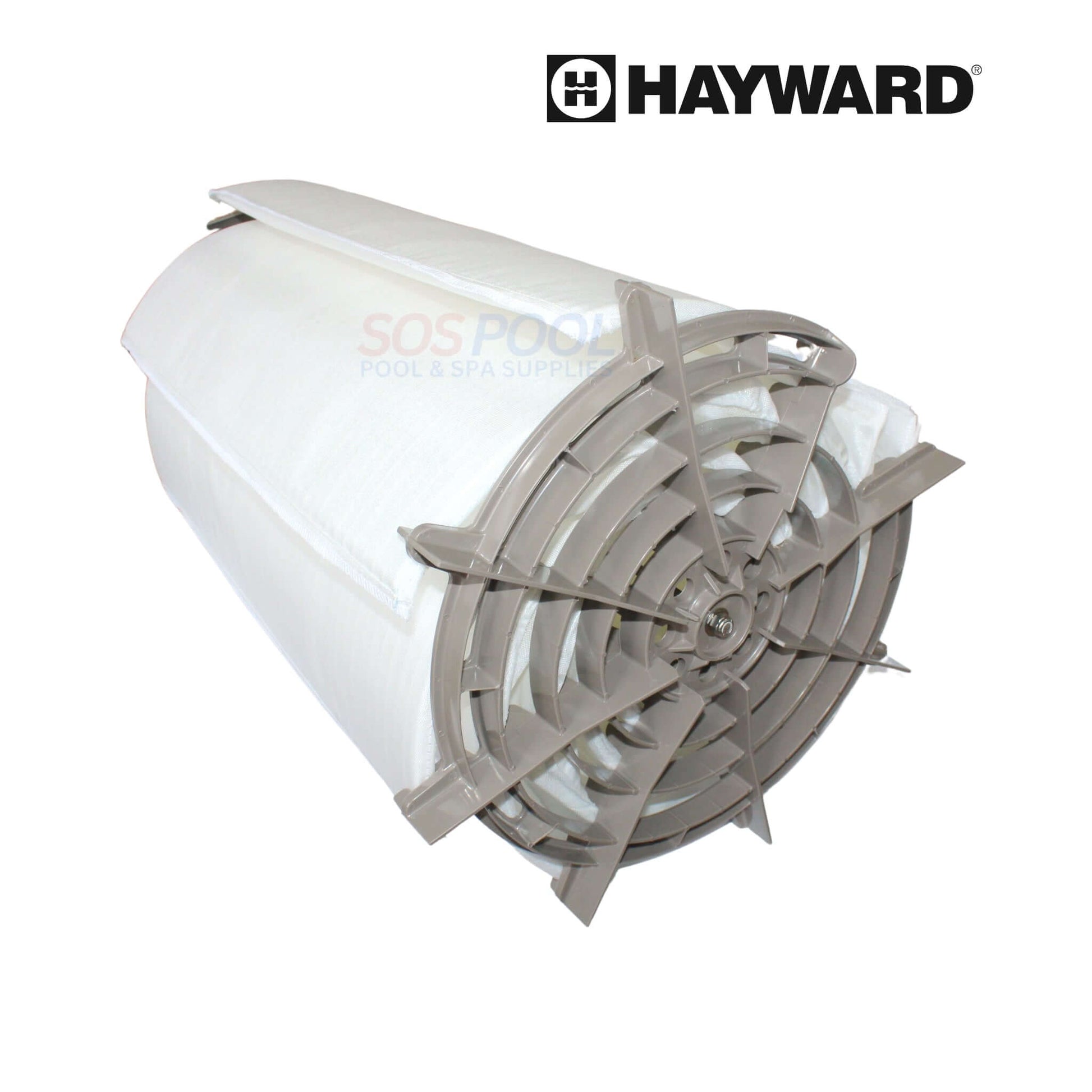

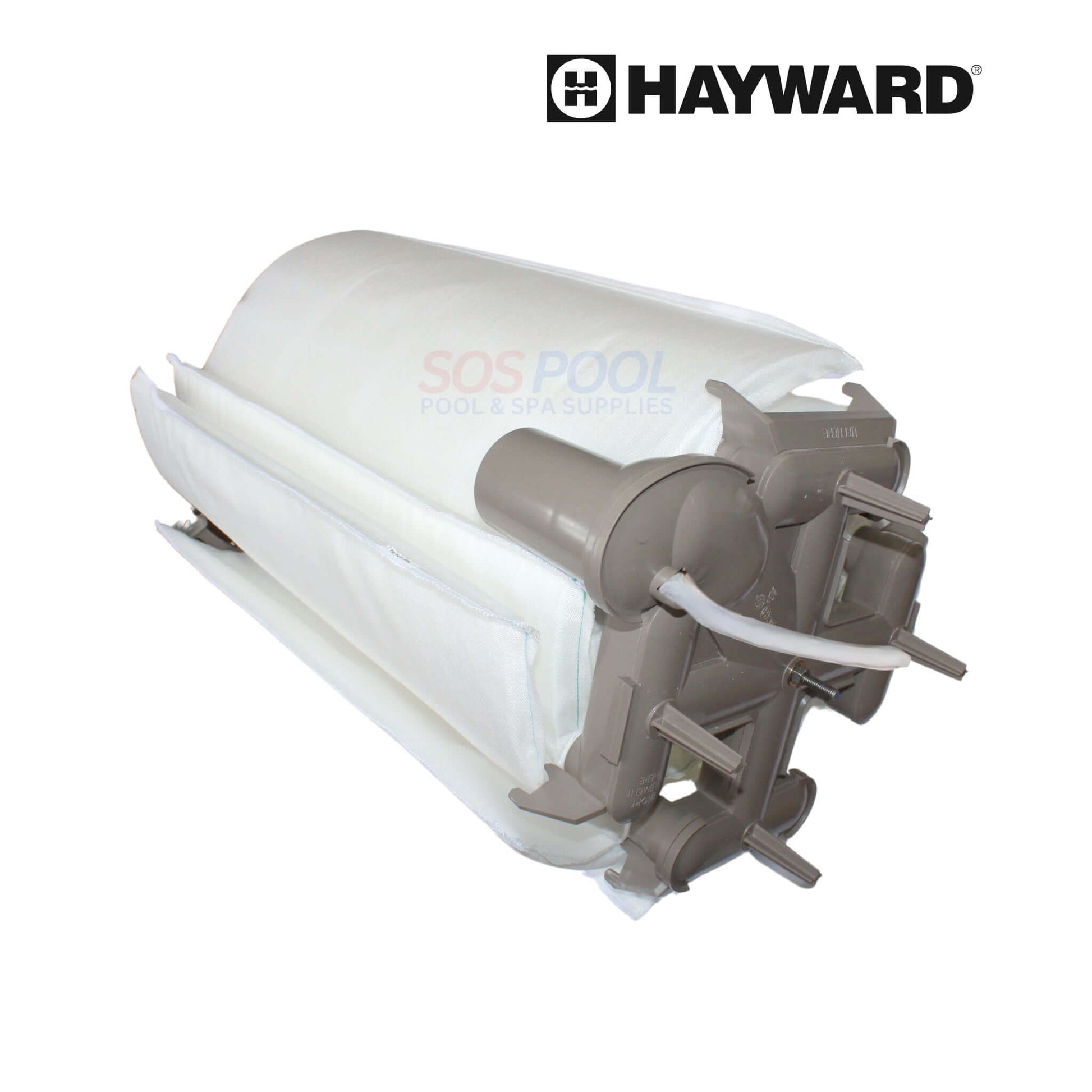

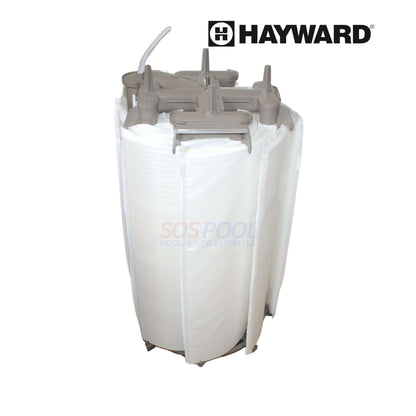

The Hayward DEX4800DC Complete Element Cluster is a replacement assembly designed for Hayward Pro-Grid DE4820 and MicroClear DE4800 filters. Offering 48 square feet of filtration area, this pre-assembled unit includes seven full-size grids and one partial grid, along with a top collector manifold, bottom manifold, flex air relief assembly, retainer rod, and filter element locator. Constructed from high-impact styrene and covered with multi-filament polypropylene fabric, the grids are engineered for durability and efficient debris capture. This complete assembly ensures optimal filtration performance and simplifies maintenance by allowing for straightforward replacement of the entire grid cluster.
-
OEM Replacement for DE4820 & DE4800 Filters: Designed for Hayward Pro-Grid and MicroClear models to ensure proper fit and reliable operation.
-
Complete Pre-Assembled Unit: Includes seven full DE grids, one partial grid, top and bottom manifolds, air relief, retainer rod, and locator for quick installation.
-
48 Sq Ft Filtration Area: Provides extensive surface coverage for efficient dirt and debris capture, supporting consistently clean pool water.
-
Reinforced for Long-Term Use: Constructed with high-impact styrene frames and wrapped in multi-filament polypropylene fabric for enhanced durability.
-
Simplifies Internal Filter Maintenance: Replacing the full cluster eliminates guesswork and helps restore peak filtration performance with minimal effort.
This complete assembly comes pre-assembled and ready to install.
- (7) Large 24", 48 Square Foot Grids
- (1) Small 24", 48 Square Foot Grid
- (1) Top Collector Manifold: DEX2400C
- (1) Retainer Rod: DEX4800R
- (1) Retainer Nut: ECX176865
- (2) Washer: ECX1109
- (1) Filter Element Locator: DEX2400H
- (1) Flex Air Relief Assembly: DEX2400CR
- Hayward Pro-Grid 48 sq. ft DE Filters: DE4820

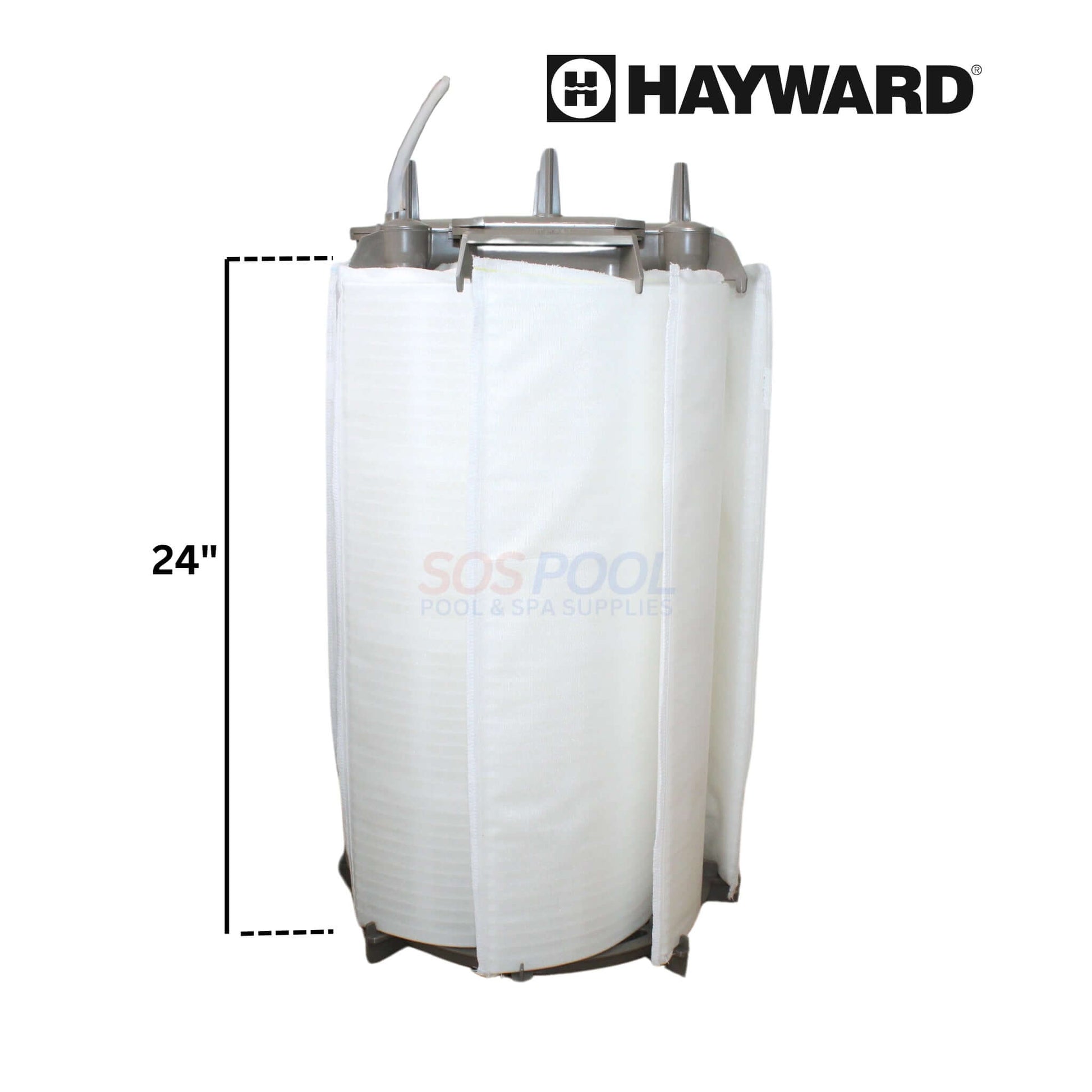

- Large Grids Dimensions: 24" Height - 11" Width
- Partial Grid Dimensions: 24" Height - 9 3/4" Width
Restoring Water Flow and Clarity
order dex4800dc online to fix poor pool filtration
install new cluster to improve de filter performance
full rebuild set restores proper pressure and flow
water clarity issues solved with new internal grids
replace worn or brittle grids to avoid de leakage
Online Purchase and Fast Shipping
buy hayward dex4800dc cluster online now
order preassembled 48 sq ft grid set with fast delivery
oem internal cluster for de4820 shipped ready to install
best online price for hayward complete de grid pack
online store ships full de filter assembly quickly
Confirming Fit and Setup Requirements
fits 24 inch tall de filters with 48 sq ft capacity
includes retainer, air relief, washers, and locator
match all internal parts for quick drop-in installation
compatible with vertical grid pro-grid filters
ideal for hayward de filter rebuild and service
