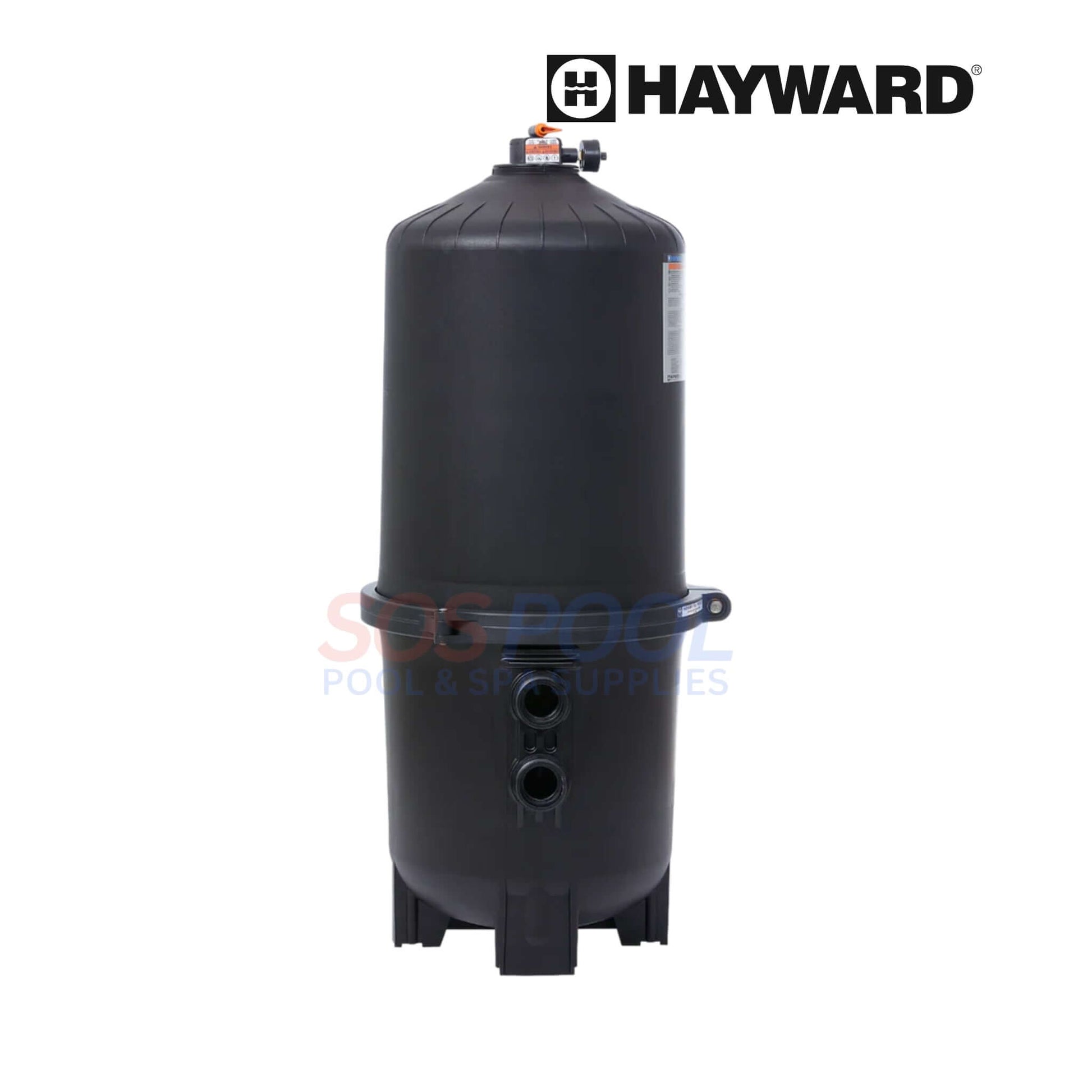

Hayward ProGrid 60 Sq Ft DE Filter | W3DE6020

Hayward ProGrid 60 Sq Ft DE Pool Filter System | W3DE6020

The Hayward ProGrid 60 Sq Ft DE Pool Filter System | W3DE6020 delivers unmatched water clarity through advanced diatomaceous earth (DE) filtration technology. Designed for large residential and commercial pools, it combines exceptional hydraulic efficiency with long-lasting durability. Its expansive 60 square foot filtration area enables superior debris capture, removing impurities as small as 5 microns for brilliantly clear and inviting water. Constructed from heavy-duty, glass-reinforced co-polymer, the W3DE6020 is built to resist corrosion, high pressure, and chemical exposure, ensuring years of reliable service under the harshest conditions.

This ProGrid model features Hayward’s vertical grid design, optimizing internal water flow for reduced resistance and maximum filtration efficiency. Maintenance is simplified through a heavy-duty, tamper-proof one-piece flange clamp that allows quick access to internal components without disturbing the plumbing. The rapid-release air relief valve and integrated pressure gauge provide straightforward monitoring and operation, while the top-down backwashing system ensures even DE distribution for consistent results. Engineered for precision, strength, and ease of service, the Hayward W3DE6020 stands as a trusted standard for pool owners and professionals seeking high-capacity filtration and reliable performance.

Note: You may require a backwash valve for this filter which is Not Included and can be purchased separately

Key Features of the Hayward W3DE6020 ProGrid Diatomaceous Earth Filter

• Expansive 60 Sq Ft Filtration Capacity: Provides extensive surface area to handle high debris loads efficiently, ideal for large pools demanding premium water clarity.

• Precision 5-Micron Filtration: Diatomaceous earth media traps even microscopic contaminants, maintaining exceptionally clean, safe, and sparkling pool water.

• Rugged, Corrosion-Proof Construction: Crafted from glass-reinforced co-polymer that withstands chemical exposure, pressure, and weather for long-term reliability.

• Optimized Water Flow Performance: Incorporates 2-inch full-flow plumbing and internal piping for reduced friction loss and superior hydraulic efficiency.

• Effortless Maintenance Access: One-piece flange clamp allows tool-free disassembly for grid inspection and cleaning without disconnecting plumbing lines.

• Fast Air Purge System: Manual high-capacity air relief valve releases trapped air quickly with a simple quarter-turn, improving safety and ease of operation.

• Top-Down Backwashing Design: Ensures uniform DE distribution across all filter grids, maintaining consistent pressure and longer cleaning cycles.

• Professional-Grade Monitoring: Integrated pressure gauge provides real-time performance feedback, making it easy to determine when servicing is required

Specifications

• Maximum Filtration Size: Filters out particulates as small as 5 microns
• Filtration Area: 60 square feet
• Dimensions: 26" inches in diameter and 46.5" inches in height
• Vertical Clearance: 68"
• Grid: 1 Required (Included)
• Weight: Approximately 84 pounds
• DE Required: 7.5 pounds
• Installation: 2 inch plumbing connections
• Flow Rate: Maximum flow rate of 120 gallons per minute (GPM)

Includes

• (1) Hayward W3DE6020 Pro-Grid DE Filter
• (1) Filter Grid
• (1) Manual Air Relief Valve- CCX1000V
• (1) Pressure Gauge- ECX2712B1
• (1) Clamp- DEX2421JKIT

*See manual page 10 for complete list

Compatibility

Compatible with the following valves

• Selecta-Flo 2" SKT- SP0740DE
• Vari-Flo 1 1/2" NPT- SP0710XR50
• Vari-Flo 2" NPT- SP0715XR50
• Slide Valve 2" SKT- SP0410X5025
