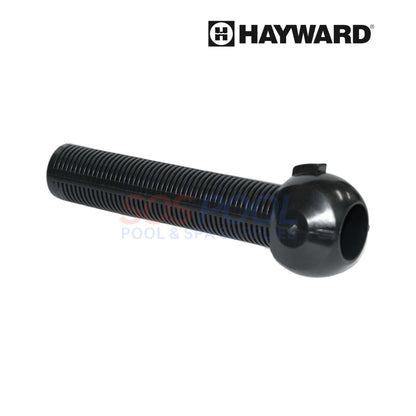

The OEM Hayward SX200QN New Style Pivot Lateral is designed for use with Hayward Pro Series Sand Filters, specifically models such as the S166T, S180T, and S210S. This lateral features a pivot-ball design, which allows it to swivel easily during installation, making it simpler to replace the standpipe assembly. With a total length of 5 inches, it helps ensure even water distribution within the filter, improving filtration efficiency and extending the life of the system.
-
Specifically designed for key models: The OEM Hayward SX200QN Pivot Lateral is compatible with Hayward Pro Series Sand Filters, including models like the S166T, S180T, and S210S, ensuring a perfect fit.
-
Easy installation with pivot-ball design: Its pivot-ball feature allows for smooth swiveling during installation, making standpipe assembly replacements quicker and hassle-free.
-
Optimizes water distribution: Measuring 5 inches in length, this lateral ensures even water flow throughout the sand bed, enhancing filtration efficiency and keeping pool water clear.
-
Increases filtration system lifespan: By improving water distribution and filtration performance, the lateral helps extend the overall life and efficiency of your pool's sand filter system.
-
Durable and reliable: Crafted to withstand demanding conditions, this lateral provides long-lasting support to your filtration system, contributing to consistent, optimal operation.
- (1) Hayward SX200QN New Style Pivot Lateral
- Hayward Pro Series Sand Filter Models Pro Series: S210S, S180T, S210T, S220T, S220T2, S166T
Note: This lateral may be compatible with your filter, please refer to your owners manual to ensure compatibility.
