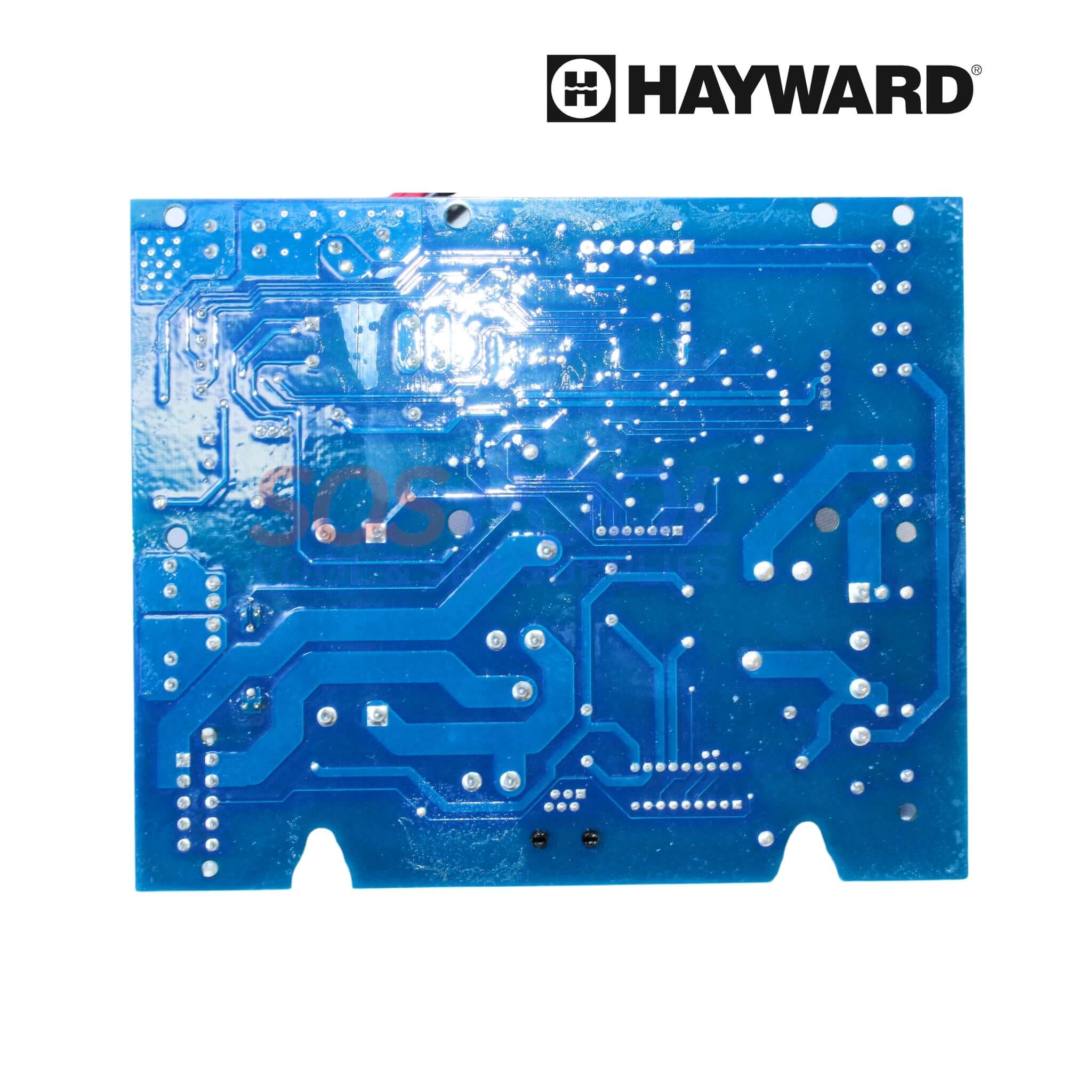

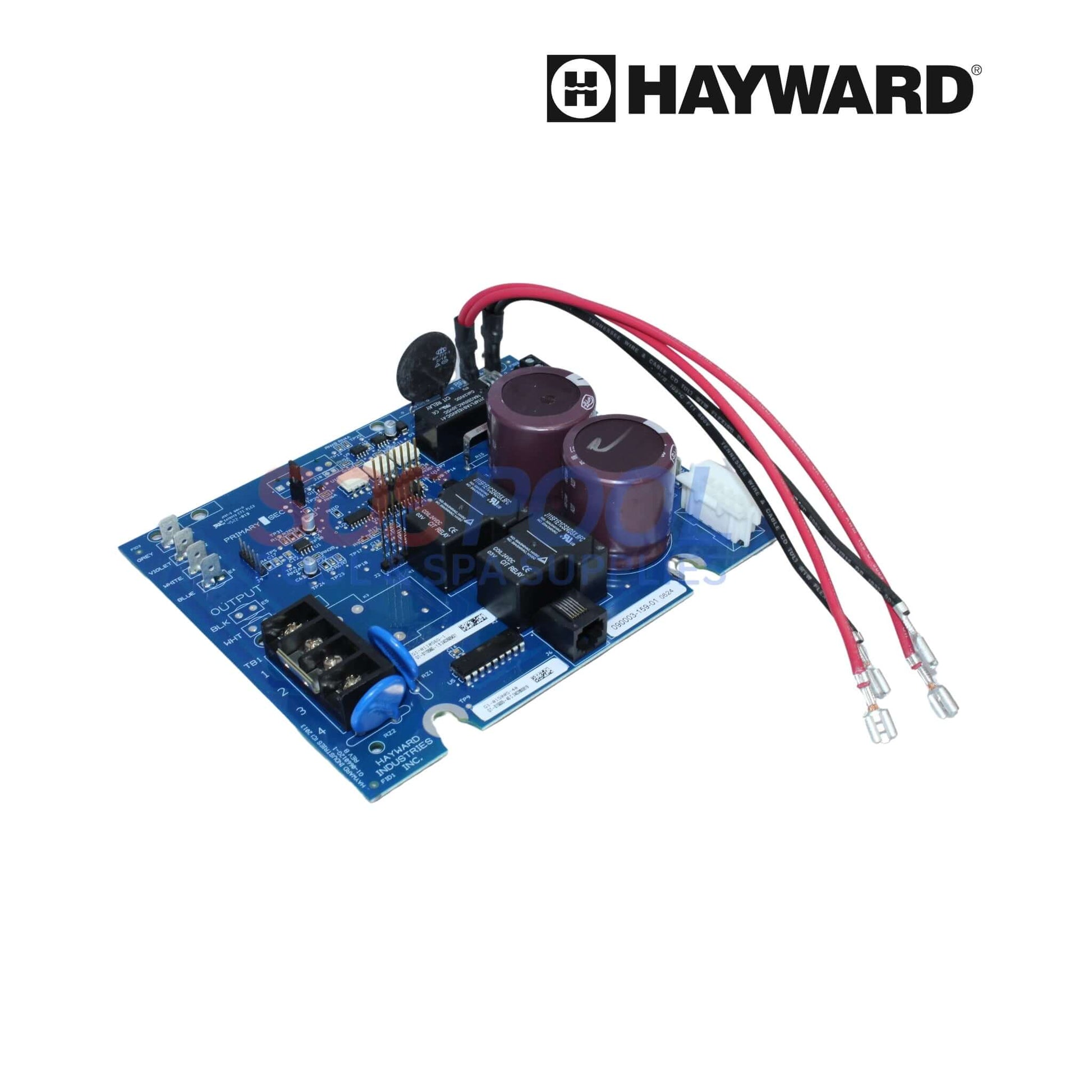

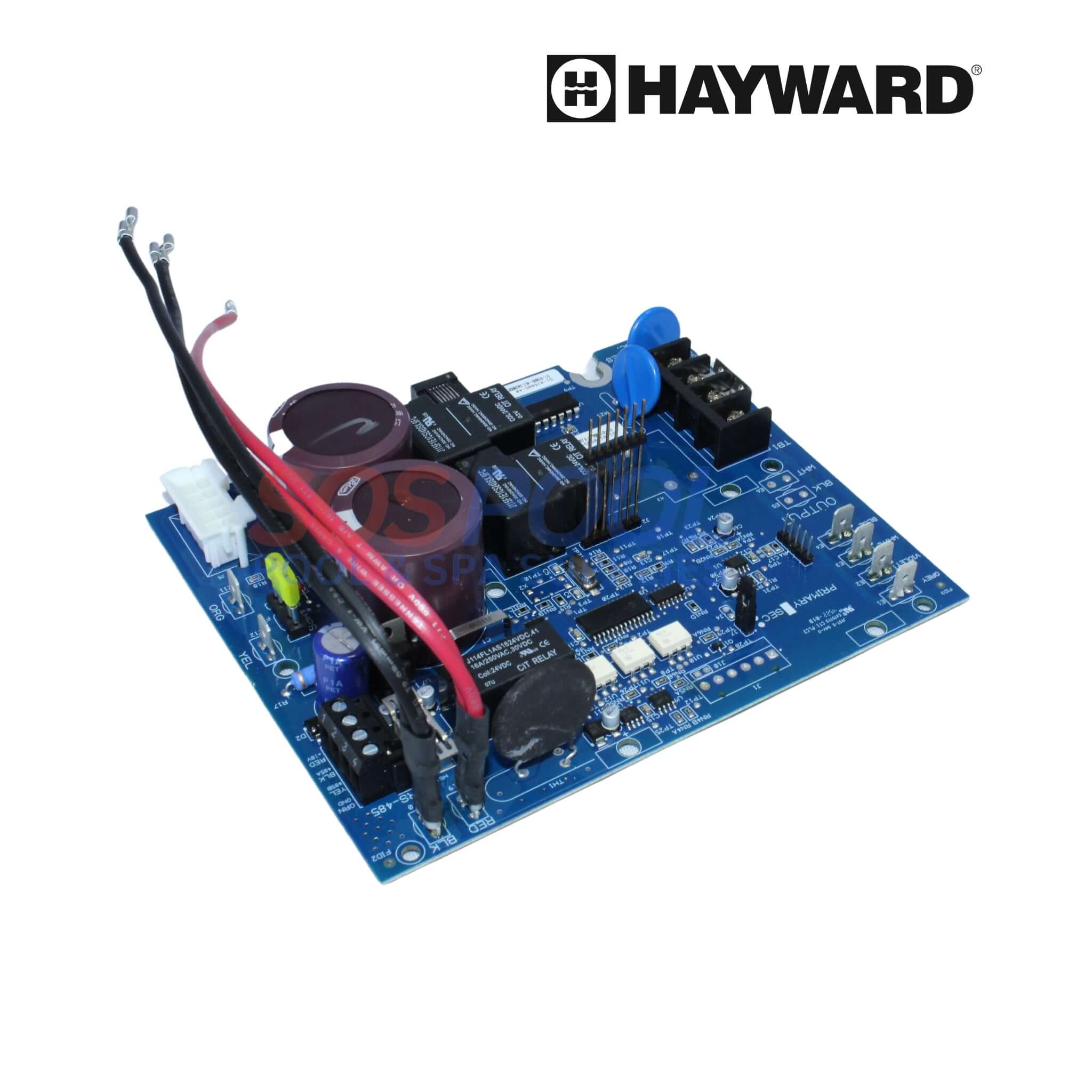

The OEM Hayward GLX-PCB-RITE is a genuine replacement main circuit board designed for AquaRite salt chlorine generators, ensuring your system continues to operate efficiently. Built with durability in mind, this PCB controls chlorine production by regulating various pool parameters such as salt levels, water temperature, and flow. It is a direct replacement for existing AquaRite systems, making installation simple and minimizing downtime. Designed to withstand the harsh environments of pools and spas, it provides long-lasting performance.
Note: Because this replacement mainboard is used to replace various models, it must be configured to operate your pool's Turbo Cell before operation. After installing the board, refer to the steps below to correctly configure the board for use with the installed Turbo Cell. Failure to perform this step may result in inaccurate salt readings, improper operation, and possible system shutdown.
Determine the model of the installed Turbo Cell which can be found on its colored label. Refer to the following information and steps below to set the Turbo Cell type.
"t-3" = T-CELL-3, GLX-CELL-3-W
"t-5" = GLX-CELL-5, GLX-CELL-5-W
"t-9" = T-CELL-9, GLX-CELL-9-W
"t-15" = T-CELL-15, Gl::K-CELL-15-W-
-
Genuine Replacement Circuit Board: The Hayward GLX-PCB-RITE is specifically designed for AquaRite salt chlorine generators, ensuring efficient operation and optimal performance for your pool system.
-
Durable and Reliable: Built to withstand harsh pool and spa environments, this PCB ensures long-lasting performance. It regulates critical parameters such as salt levels, water temperature, and flow for consistent chlorine production.
-
Direct Replacement for AquaRite Systems: Designed as a direct replacement, the GLX-PCB-RITE makes installation quick and easy, minimizing downtime for pool maintenance and keeping your system running smoothly.
-
Maintains Chlorine Production Efficiency: By regulating key factors, this circuit board ensures your AquaRite system consistently produces the right amount of chlorine. It helps keep your pool water clean and safe with minimal effort.
- Hayward Goldline AquaRite Salt Chlorine Generators
- T-CELL-3, T-CELL-5, T-CELL-9 and T-CELL-15 Turbo Cells
- Slide the Main Switch to the "Auto" position.
- Push the Diagnostic button repeatedly until "t-xx" appears on the display ("t-15" is the factory defauIt) If the desired cell type Is displayed skip to step 4.
- To change to a different cell type, slide the Main Switch from "Auto" to "super chlorinate" and back to "Auto" Repeat this process until the desired cell type is displayed
- Push the Diagnostic button to exit.
- The GLX-PCB-RITE has now been configured and is ready to start normal operation
