On the Hayward Pro Series Sand Filter diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward Pro Series Sand Filter

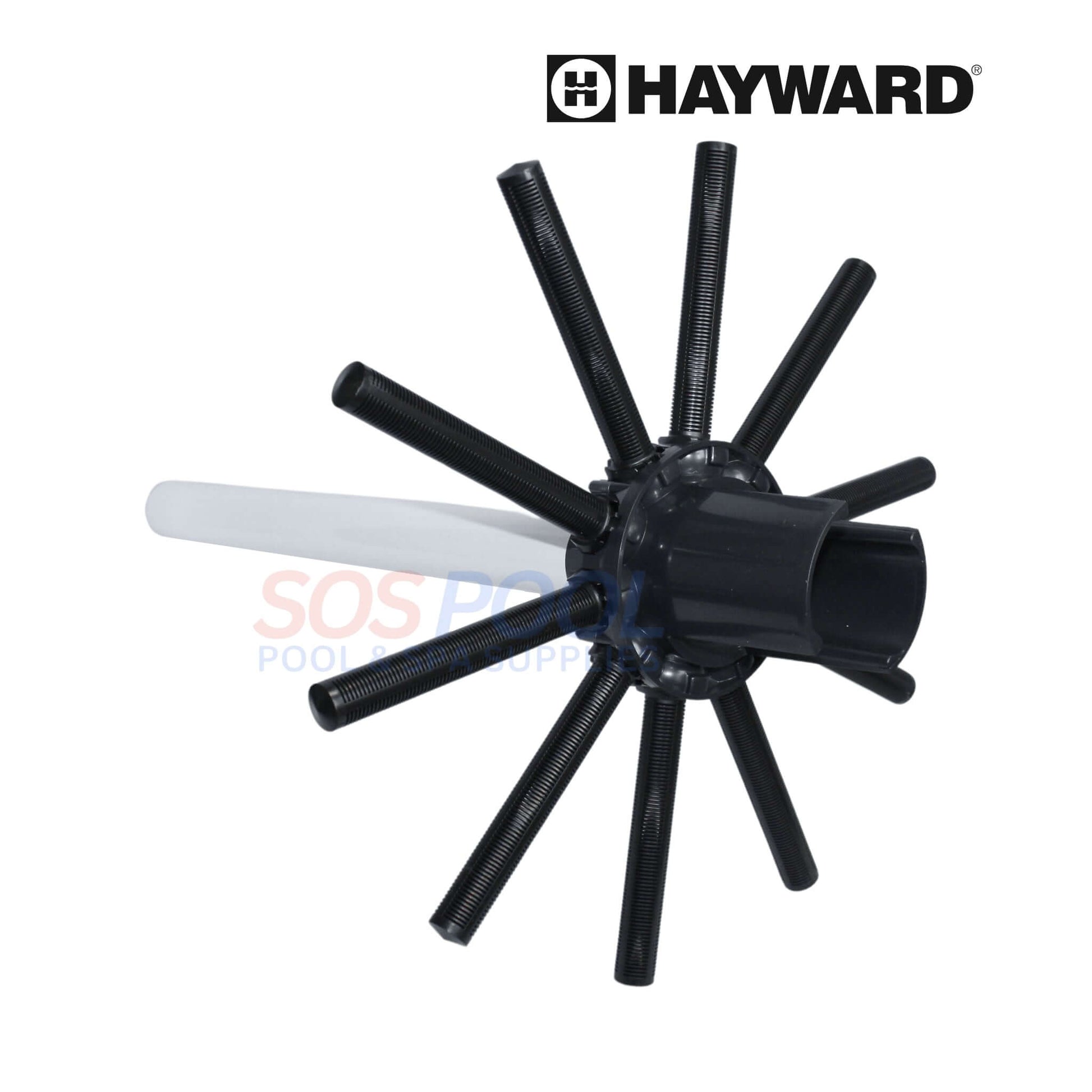

The OEM Hayward Lateral Assembly with Center Pipe SX244DA is a critical replacement part designed for Hayward Pro Series sand filter models such as the S244T. This assembly includes a durable center pipe and ten folding, umbrella-style laterals that help evenly distribute water for optimal filtration. The laterals work by filtering debris and contaminants from the water, ensuring your pool remains clean. This genuine Hayward replacement is easy to install and is built for long-lasting use, offering excellent durability in various pool environments. It measures 28 inches in total length.
-
Designed for Hayward Pro Series Filters – The OEM Hayward Lateral Assembly with Center Pipe SX244DA is a critical replacement part for Hayward Pro Series sand filters, including models like the S244T, ensuring compatibility and efficient performance.
-
Optimal Water Distribution – Featuring a 28-inch center pipe and ten folding umbrella-style laterals, this assembly ensures even water distribution within the filter, maximizing filtration efficiency and debris removal.
-
Easy to Install – This genuine Hayward replacement part is designed for straightforward installation, allowing you to restore your pool's filtration system quickly and efficiently.
-
Built for Long-Lasting Durability – Made from high-quality materials, this lateral assembly is engineered to withstand long-term use in various pool environments, ensuring clean, clear water over time.
- (1) Hayward SX244DA Lateral Assembly
- Hayward Pro Series S244T Sand Filters
