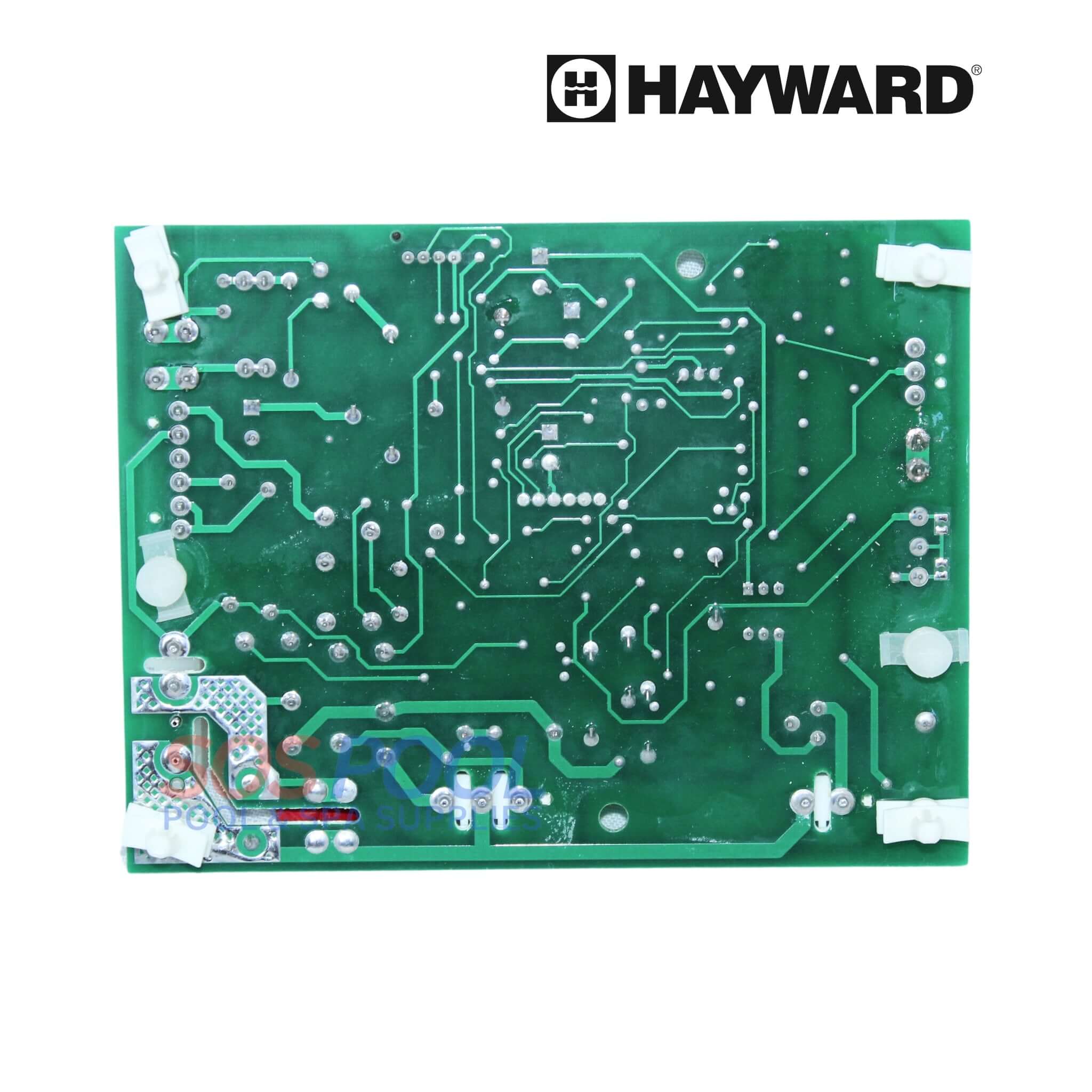

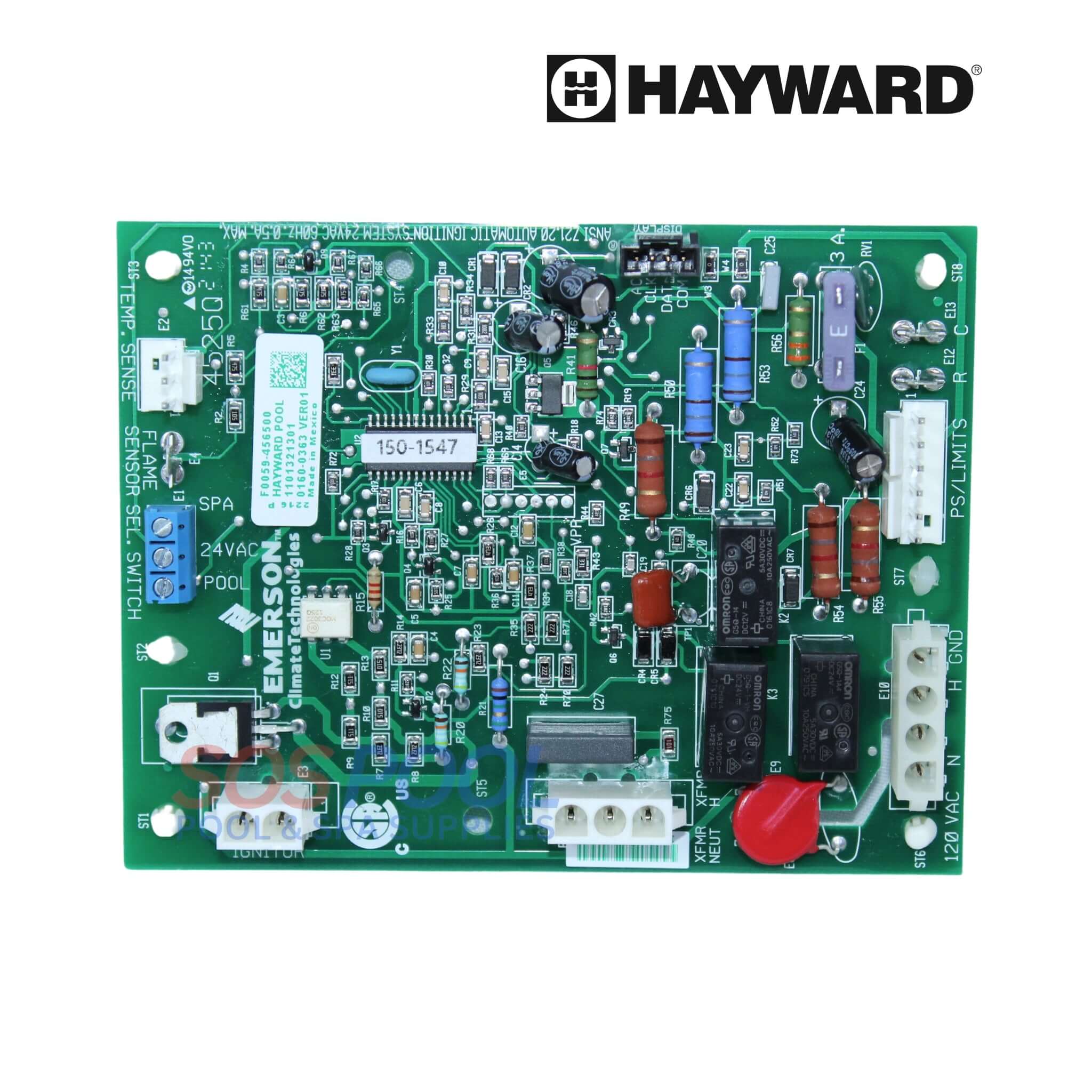

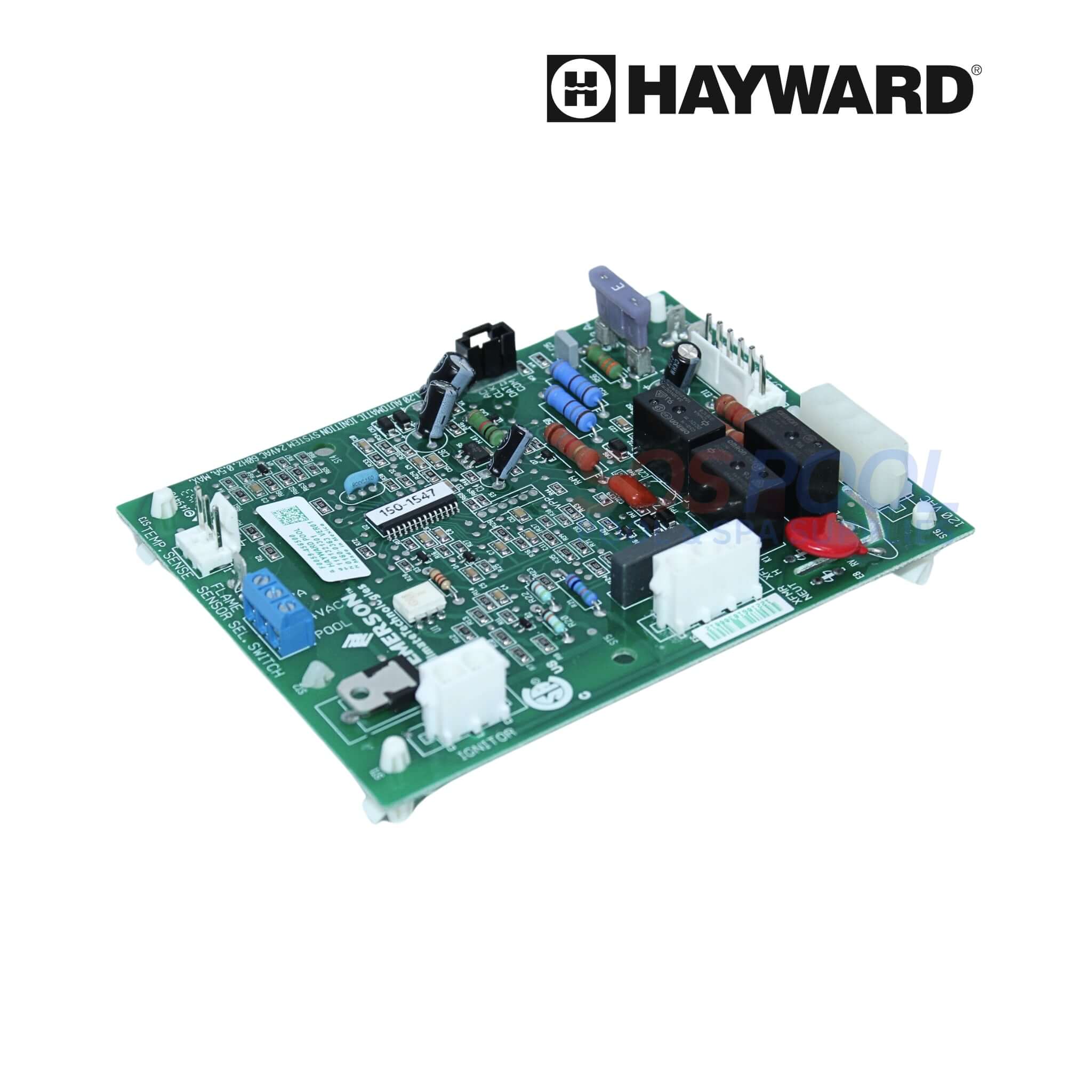

The OEM Hayward Integrated Control Board IDXL2ICB1931 is a part for Hayward H-Series Low NOx heaters, compatible with models H250IDL2, H350IDL2, and H400IDL2 manufactured after September 20, 2004. This control board integrates multiple heater functions, including ignition control, temperature regulation, and diagnostic monitoring, ensuring the efficient and reliable operation of your pool or spa heater. It features three amp-style plug female connectors (1-4 pin, 1-3 pin, and 1-2 pin), and it is designed as a genuine Hayward replacement product for seamless compatibility and enhanced heater performance.
-
Designed for Hayward H-Series Low NOx Heaters: The Integrated Control Board IDXL2ICB1931 is specifically compatible with models H250IDL2, H350IDL2, and H400IDL2 manufactured after September 20, 2004, ensuring seamless integration and reliable performance.
-
Integrated Heater Functions: Combines ignition control, temperature regulation, and diagnostic monitoring into one board, enhancing the efficiency and ease of managing your pool or spa heater.
-
Genuine Hayward Replacement: Crafted to Hayward’s high standards, this control board guarantees compatibility and durability, maintaining the integrity and functionality of your heating system.
-
User-Friendly Connectors: Features three amp-style plug female connectors (1-4 pin, 1-3 pin, and 1-2 pin), simplifying installation and making it easy to replace without the need for extensive modifications.
-
Enhances Heater Performance: Ensures the efficient and reliable operation of your pool or spa heater by accurately managing key functions, contributing to optimal water temperature and extended system longevity.
- (1) Hayward IDXL2ICB1931 Control Board
- Hayward Universal H-Series Low NOx Induced Draft Heater Models: H250IDL2, H350IDL2, and H400IDL2 (Manufactured after September 20, 2004)
