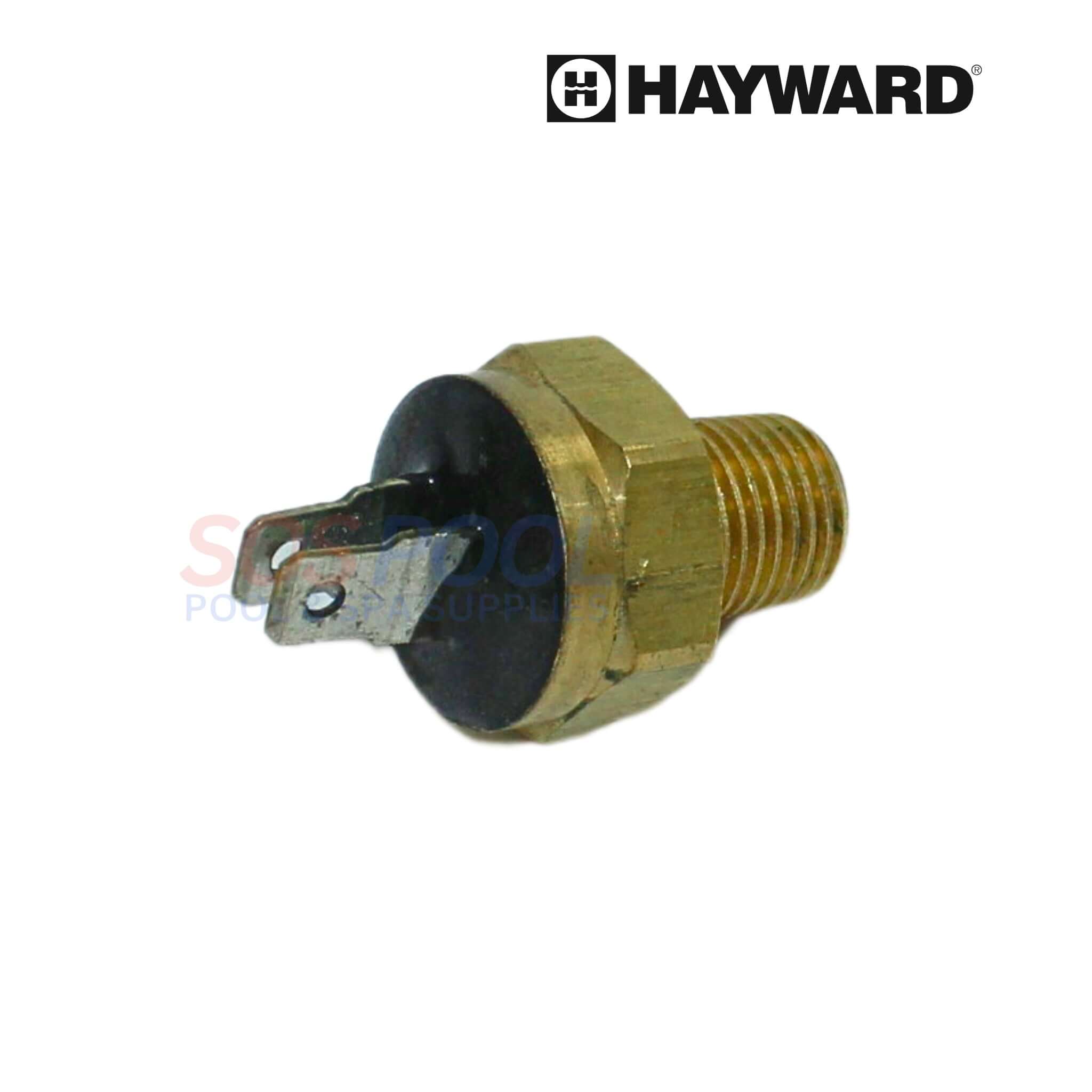

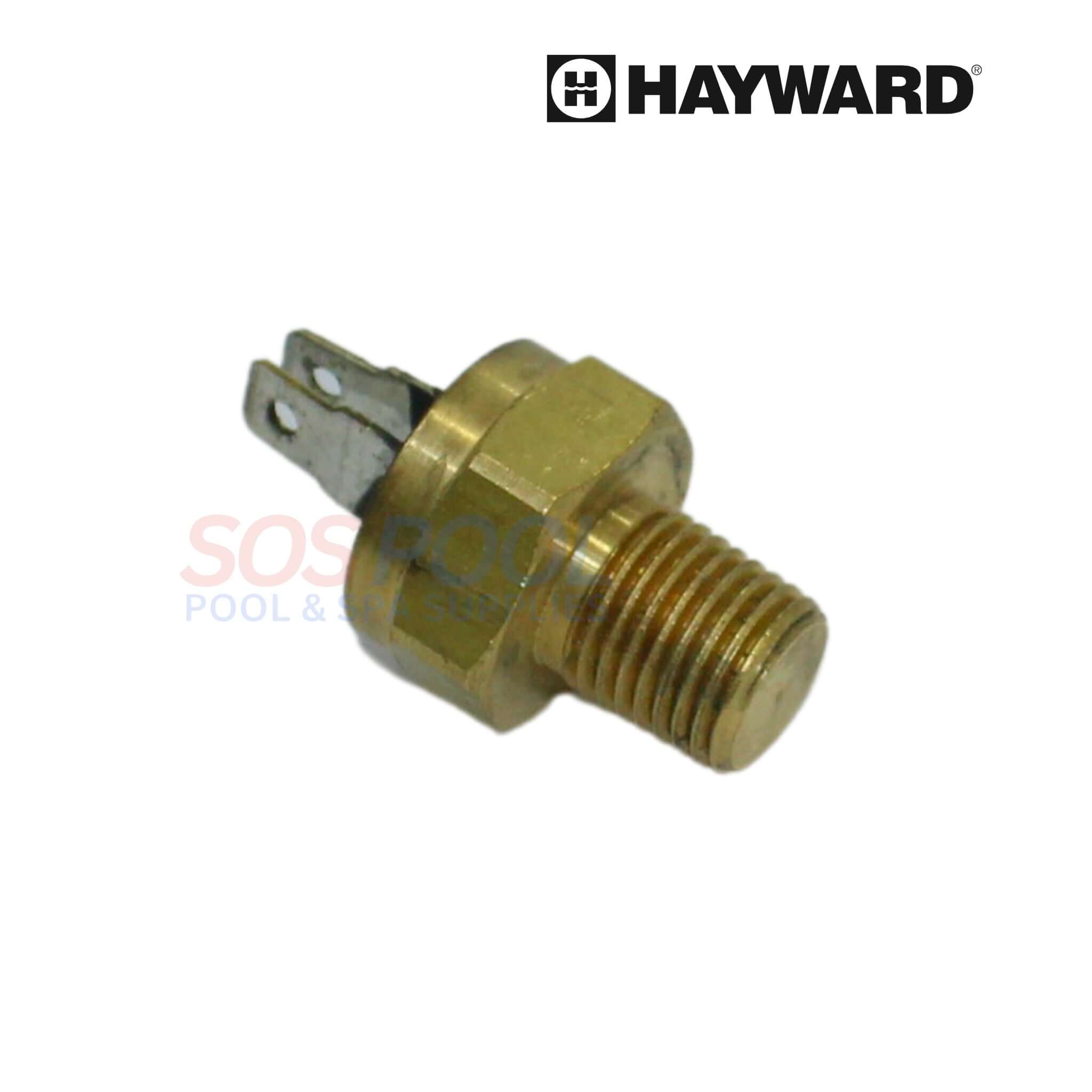

The OEM Hayward Immersion Hi-Limit Rear Header HMXHLI2932 is a crucial safety component designed for use in various Hayward H-Series pool heaters, including the Universal H-Series Low NOx models. This part is responsible for detecting when the water temperature exceeds a safe limit of 160°F, automatically shutting down the heater to prevent overheating and potential damage. It is compatible with a wide range of Hayward heater models, making it an essential replacement for maintaining the safe operation of your pool heating system.
- Crucial Safety Component: The Hayward Immersion Hi-Limit Rear Header HMXHLI2932 is an essential safety part designed for use in various Hayward H-Series pool heaters, including the Universal H-Series Low NOx models, to ensure safe operation.
- Prevents Overheating: This part is responsible for detecting when the water temperature exceeds a safe limit of 160°F, automatically shutting down the heater to prevent overheating and potential damage to the unit.
- Wide Compatibility: Compatible with a broad range of Hayward heater models, including different H-Series configurations, this hi-limit switch ensures reliable performance and safety across various systems.
- Essential for Heater Safety: By monitoring and managing temperature limits, this component plays a critical role in maintaining the safety and efficiency of your pool heating system, reducing the risk of damage and ensuring optimal operation.
- Reliable Replacement: As a key replacement part, the HMXHLI2932 helps restore the heater’s safety features and functionality, making it a crucial component for maintaining the long-term performance and safety of your Hayward pool heater.
- (1) Hayward HMXHLI2932 Hi-Limit
- Hayward Universal H-Series Low NOx Heater Models
- Hayward H-Series Millivolt Heaters
Note: This hi-limit may be compatible with your system, please refer to your owners manual to ensure compatibility.
