The OEM Hayward Hi-Limits Kit IDXHLK1930 is designed for use with H-Series Induced Draft Above Ground heaters. This kit contains 2 high-limit switches, which are essential safety components that prevent the heater from overheating by shutting it off when the water temperature exceeds safe levels. The kit ensures the heater operates within safe limits, protecting both the equipment and users. This replacement part is easy to install and is a genuine Hayward product, ensuring compatibility and reliability.
- Designed for H-Series Induced Draft Heaters: The Hayward Hi-Limits Kit IDXHLK1930 is specifically crafted for use with H-Series Induced Draft Above Ground heaters, ensuring proper fit and functionality for these models.
- Contains Essential Safety Components: This kit includes two high-limit switches, which are crucial for preventing overheating by shutting off the heater when the water temperature exceeds safe levels, protecting both the equipment and users.
- Ensures Safe Heater Operation: By maintaining the heater’s operation within safe temperature limits, the hi-limit switches help to prevent potential damage and ensure reliable performance of the heating system.
- Genuine Hayward Replacement: As a genuine Hayward product, this kit guarantees compatibility and reliability with your existing heater system, meeting high standards for quality and safety.
- Easy Installation: Designed for straightforward installation, the IDXHLK1930 kit provides a convenient and effective solution for maintaining the safe operation of your pool heater.

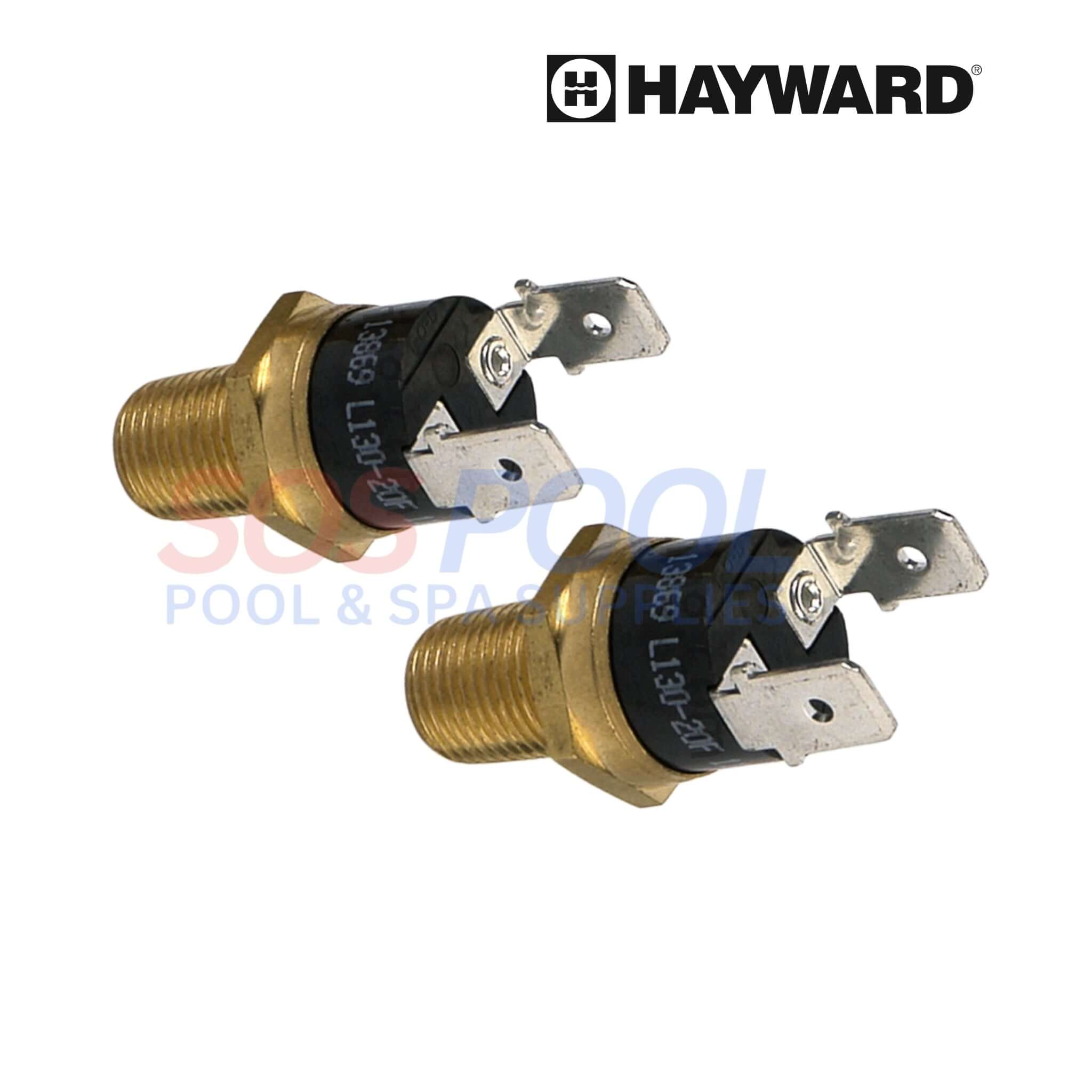

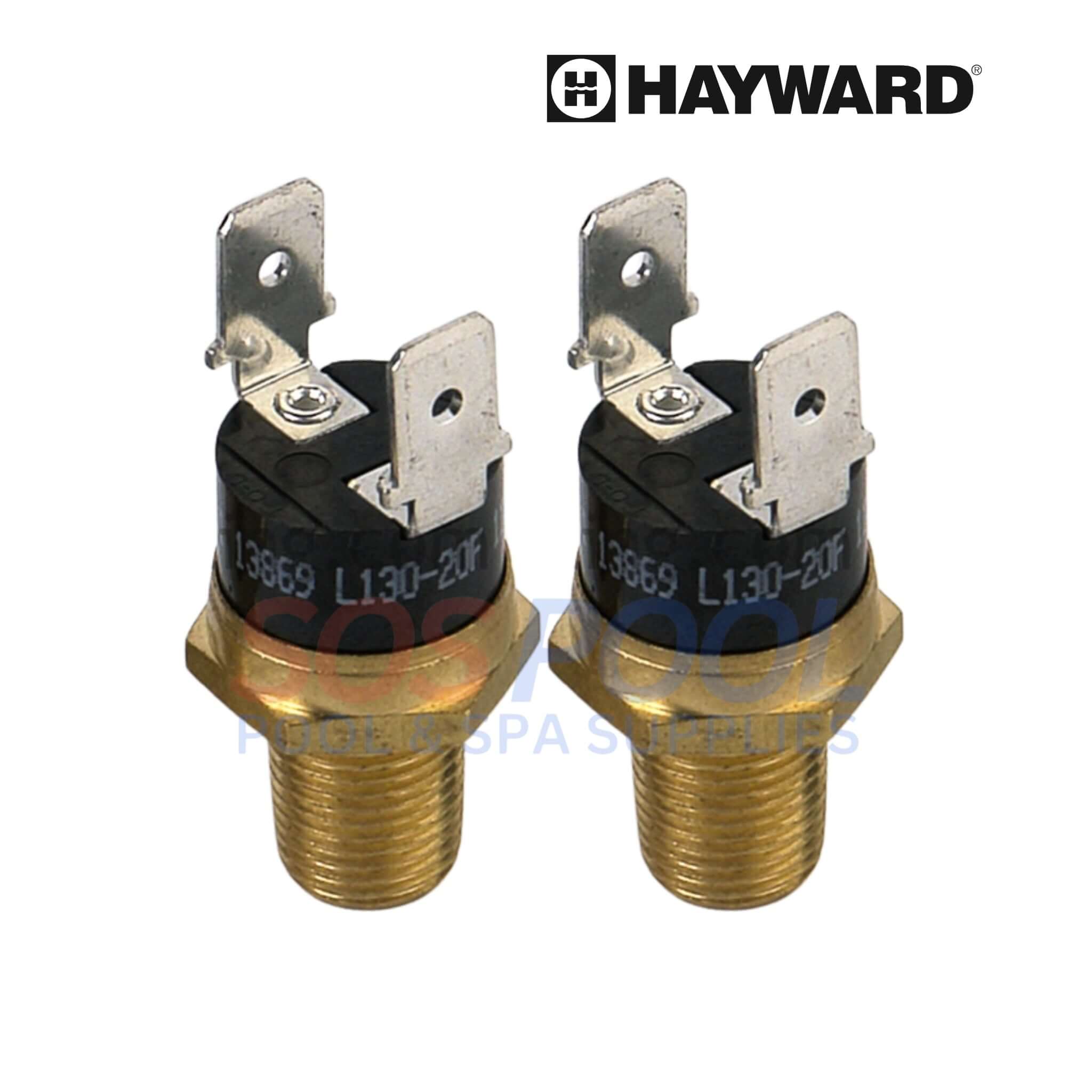

- (2) Hayward IDXHLK1930 Hi-Limits Switch
- Hayward H-Series Heaters
- Hayward H-Series Induced Draft Heaters
