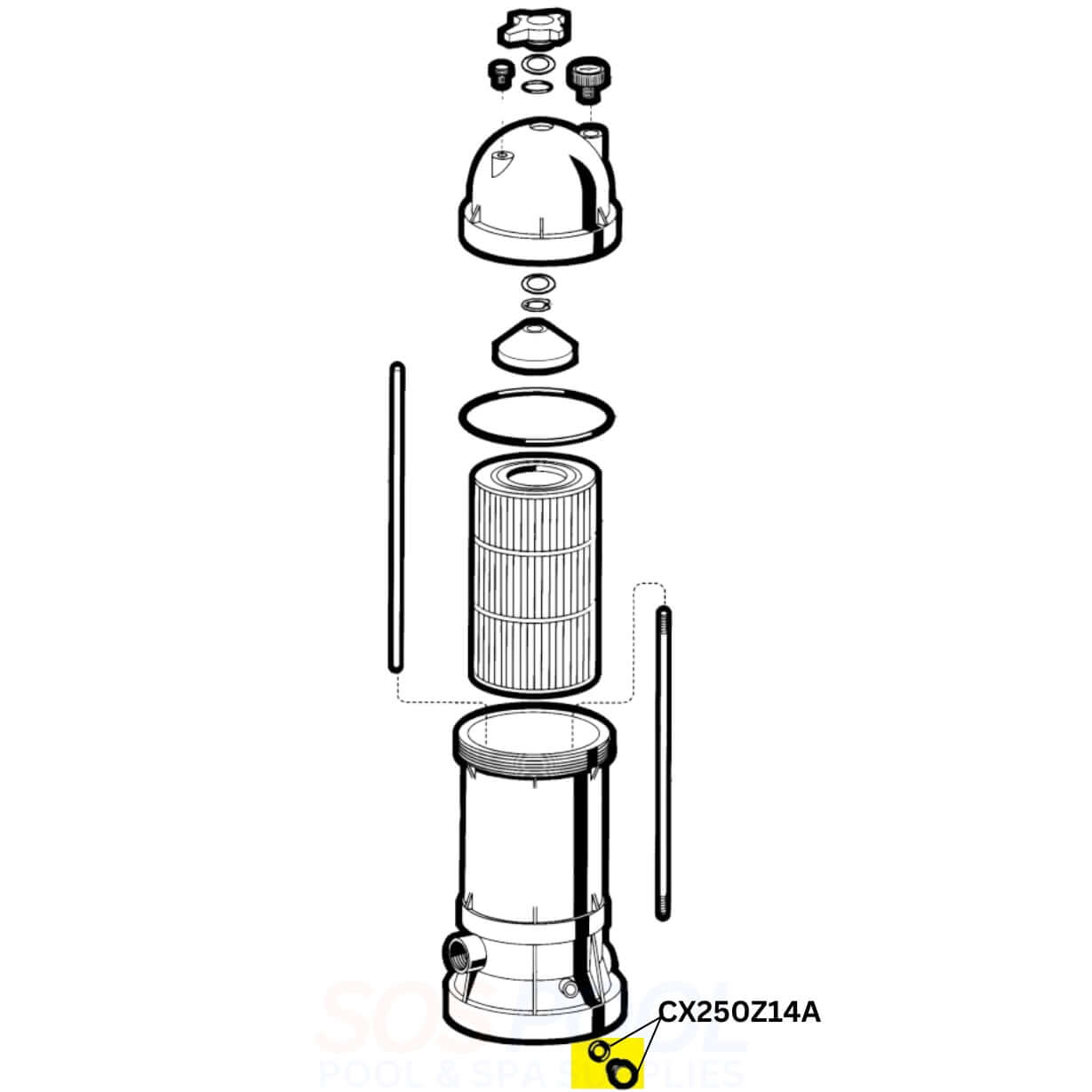

On the Hayward StarClear Plus Filter diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward StarClear Plus Filter
The OEM Hayward Drain Plug Kit for Star-Clear and Star-Clear Plus Filters, part number CX250Z14A, is a genuine replacement part designed for use with various Hayward filter models. This kit includes the drain plug and an O-ring, ensuring a secure and leak-free fit. It is compatible with several models, including the StarClear and StarClear Plus filters models such as C751, C900, C1200, and C1750. The plug measures 0.5 inches, making it a versatile and essential component for maintaining your pool's filtration system. This durable and high-quality product helps in easy drainage and maintenance of your pool filter, ensuring optimal performance and longevity of your equipment.
- Genuine Replacement Part: The Hayward Drain Plug Kit for Star-Clear and Star-Clear Plus, part number CX250Z14A, is designed for use with various Hayward filter models.
- Secure and Leak-Free Fit: Includes the drain plug and an O-ring, ensuring a tight and reliable seal.
- Versatile Component: The plug measures 0.5 inches, making it an essential part for maintaining your pool's filtration system.
- Durable and High-Quality: Facilitates easy drainage and maintenance, ensuring the optimal performance and longevity of your equipment.

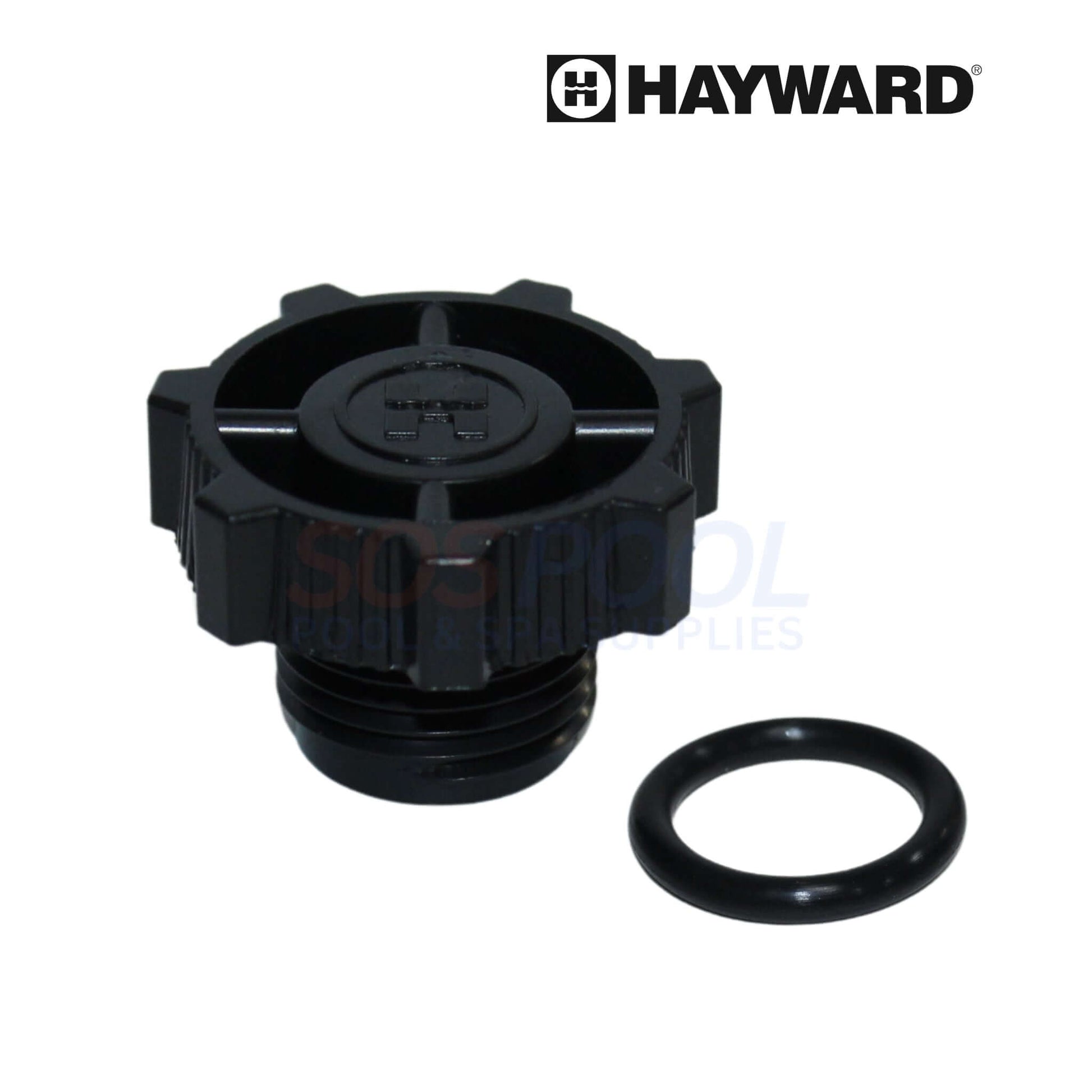

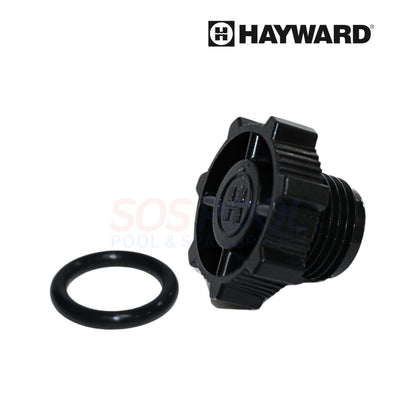

- (1) Hayward Drain Plug
- (1) O-Ring
- Hayward Star Clear Filter Models: C100, C175, C250, C500, C750
- Hayward Star Clear Plus Filter Models: C751, C900, C1200, and C1750
Note: This drain plug may be compatible with your filter, please refer to your systems owners manual to ensure compatibility.
