Hayward DEP 500 Series DE Filter | DEP100

Hayward DEP100 100 Sq Ft Pleated Element DE Filter | DEP 500 Series

The Hayward DEP100 Pleated Element DE Filter delivers unmatched clarity and efficiency by combining the filtration precision of diatomaceous earth with the maintenance simplicity of a cartridge filter. Featuring Hayward’s advanced pleated element design, this 100 sq ft system removes particles as small as 2–5 microns while allowing easy rinsing or backwashing of the pleated media. The result is cleaner water, extended cleaning intervals, and lower overall maintenance. Engineered for both new installations and DE system replacements, the DEP100 offers a powerful yet user-friendly solution for modern pool filtration needs.

The DEP100 is crafted from tough, glass-filled co-polymer for superior resistance to corrosion, pressure, and UV damage. A quick-access, tamper-proof clamp enables tool-free internal servicing, while the 2-inch full-flow hydraulic design reduces energy use and enhances circulation efficiency. Its manual air relief valve allows fast, safe venting, and the integrated diffuser ensures even water distribution for balanced DE coverage. Built to meet the demands of today’s pool systems, the Hayward DEP100 delivers long-lasting durability, energy savings, and the crystal-clear water quality expected from the Hayward name.

Key Features of the Hayward DEP100 Pleated Element DE Filter

• Hybrid DE-Cartridge Innovation: Merges DE’s ultra-fine filtration with cartridge-style simplicity for exceptional clarity and minimal maintenance.

• 100 Sq Ft Pleated Filter Area: Provides a large surface for dirt and debris capture, increasing efficiency and extending time between cleanings.

• Low-Maintenance Operation: Elements can be backwashed or rinsed quickly, eliminating messy DE grid disassembly or powder refilling.

• Rugged Tank Construction: Glass-reinforced co-polymer body delivers outstanding strength and chemical resistance under high-pressure use.

• User-Friendly Clamp Access: Single-piece clamp ring opens easily without tools, providing quick access for cleaning or inspection.

• Energy-Efficient Hydraulics: 2-inch internal plumbing design maintains smooth water flow and reduces strain on the pump for improved energy economy.

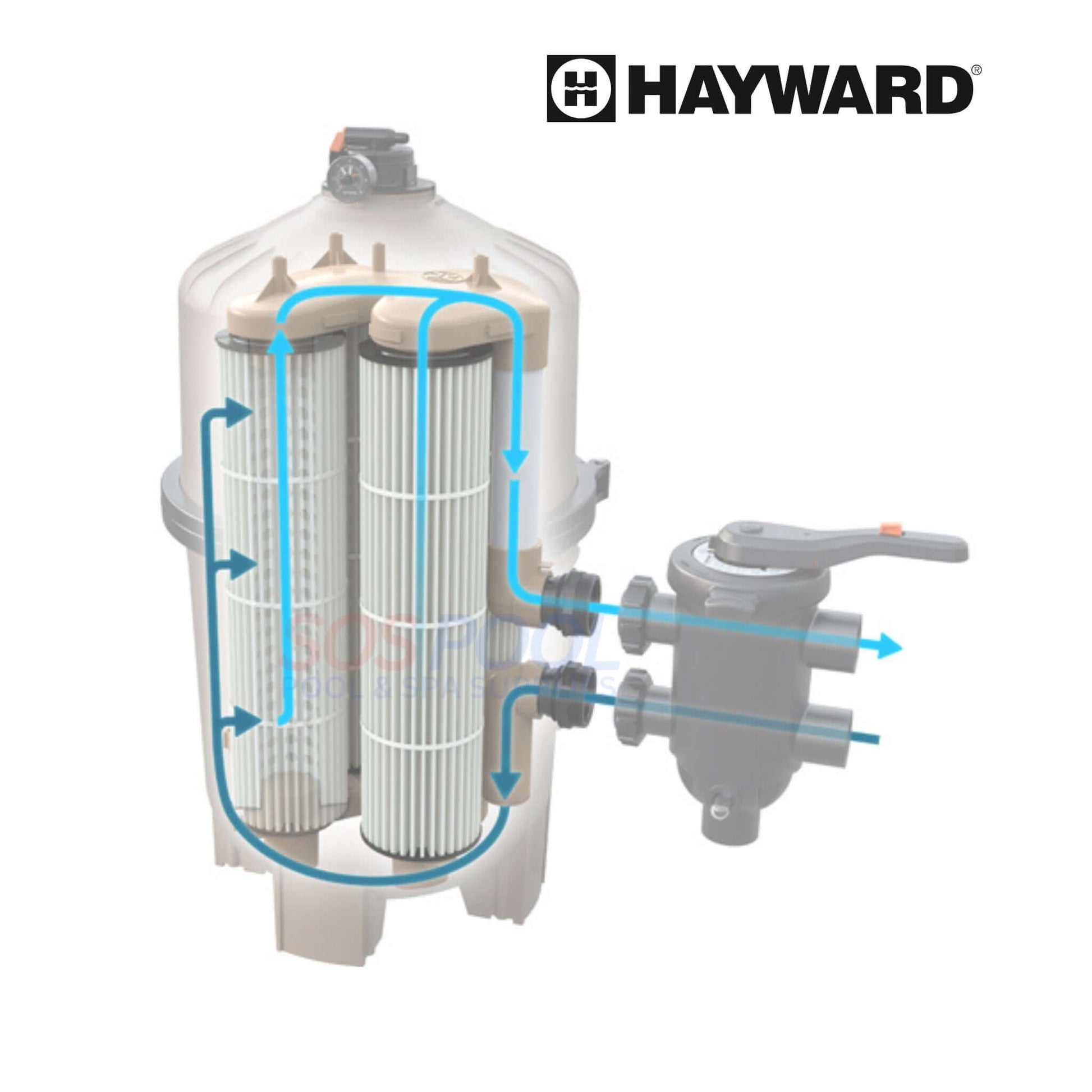

• Consistent Water Flow Distribution: Built-in diffuser evenly channels water through the pleated DE elements, ensuring maximum performance and media longevity.

• Retrofit-Friendly Installation: Fits seamlessly into most existing plumbing and DE systems, offering a straightforward upgrade path.

• Dependable Long-Term Performance: Designed by Hayward for reliability, clarity, and durability in any residential or commercial pool setup.

Specifications

• Brand: Hayward

• Effective Filtration Area: 100 ft²

• Filter Type: DE

• Parts Warranty: 3-year

• Pressure Gauge: No

• Product Dimensions: 46.5" x 24" x 24"

• Product Weight: 92 lb

• Series Filters: DEP 500

• Turnover 10 Hours: 90,000 GPM

• Turnover 8 Hours: 72,000 GPM

• Number of Filter Elements: 4

• Valve Included: Not Included

• D.E. Capacity: 10 lb
