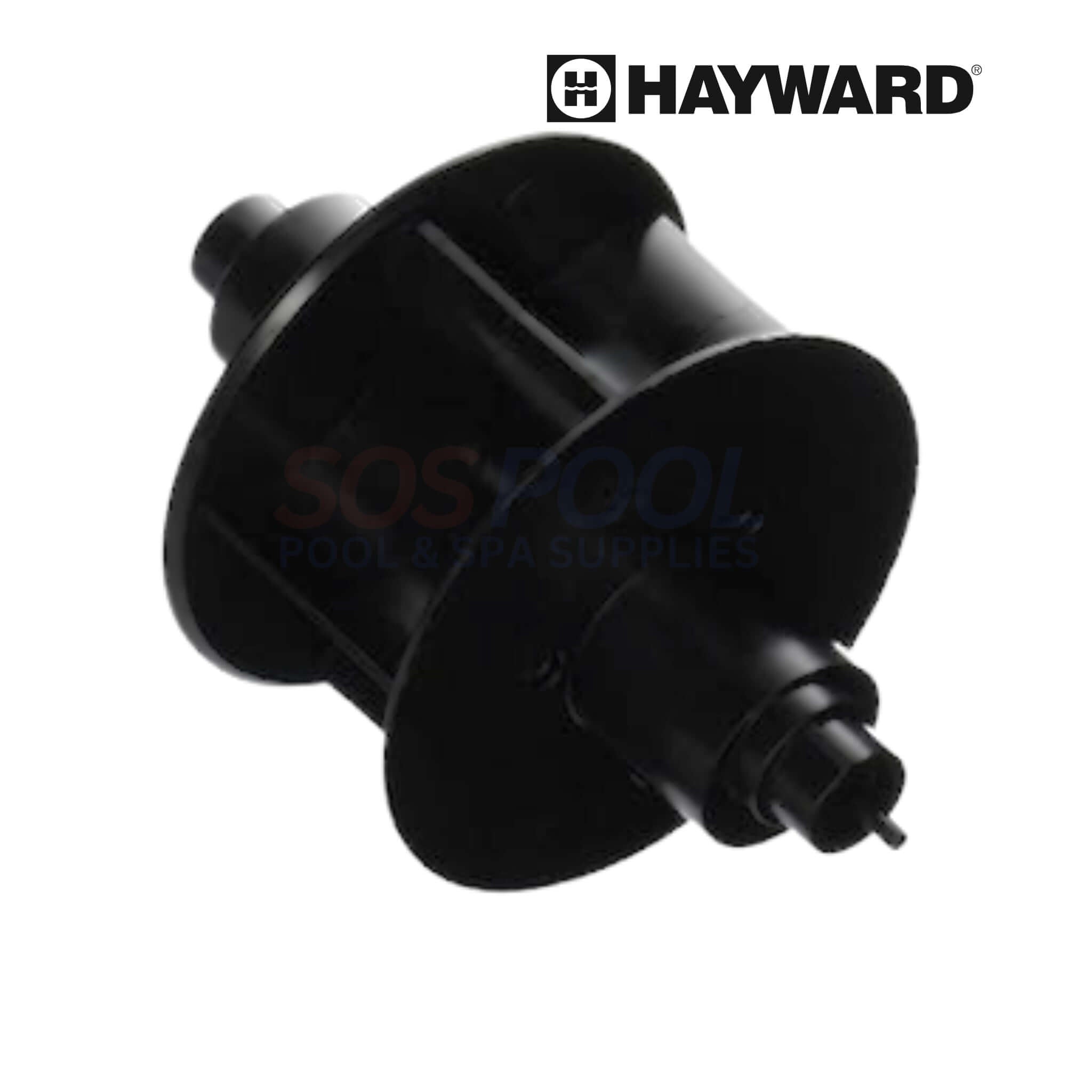

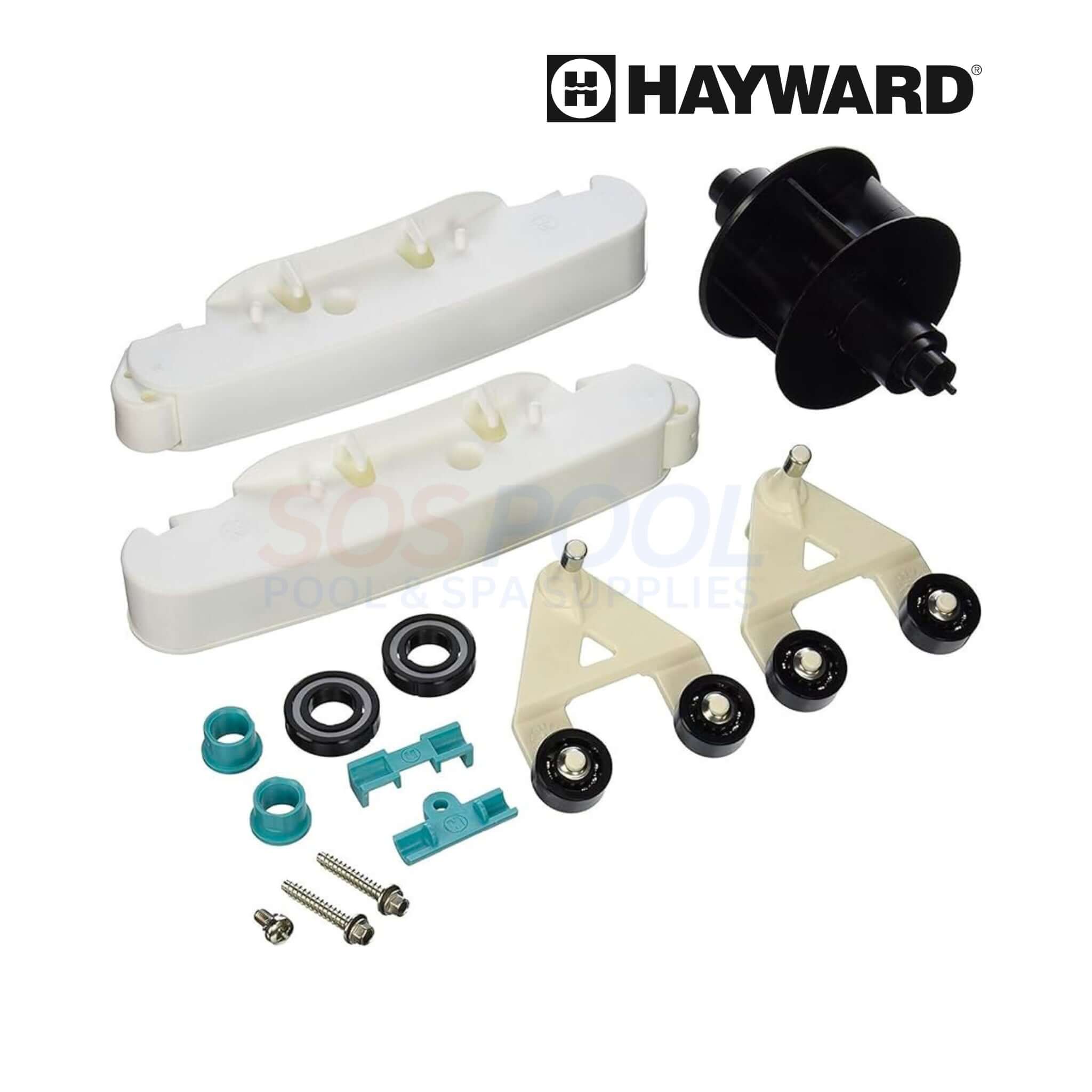

The OEM Hayward A-Frame and Pod Combo Tune-Up Kit AXV621417WHP is an essential maintenance kit designed to restore the performance of your Hayward pool cleaner. Compatible with select Hayward models, this kit includes durable A-frame and pod components to ensure smooth and efficient movement, helping your cleaner operate at peak efficiency. Engineered for easy installation, this combo tune-up kit is ideal for enhancing the longevity and effectiveness of your pool cleaner, keeping your pool spotless and well-maintained. It's the perfect solution for extending the life of your equipment and maintaining optimal cleaning performance.
-
Restores Cleaner Performance: The Hayward A-Frame and Pod Combo Tune-Up Kit AXV621417WHP is designed to enhance the performance of your Hayward pool cleaner, ensuring smooth movement and efficient operation.
-

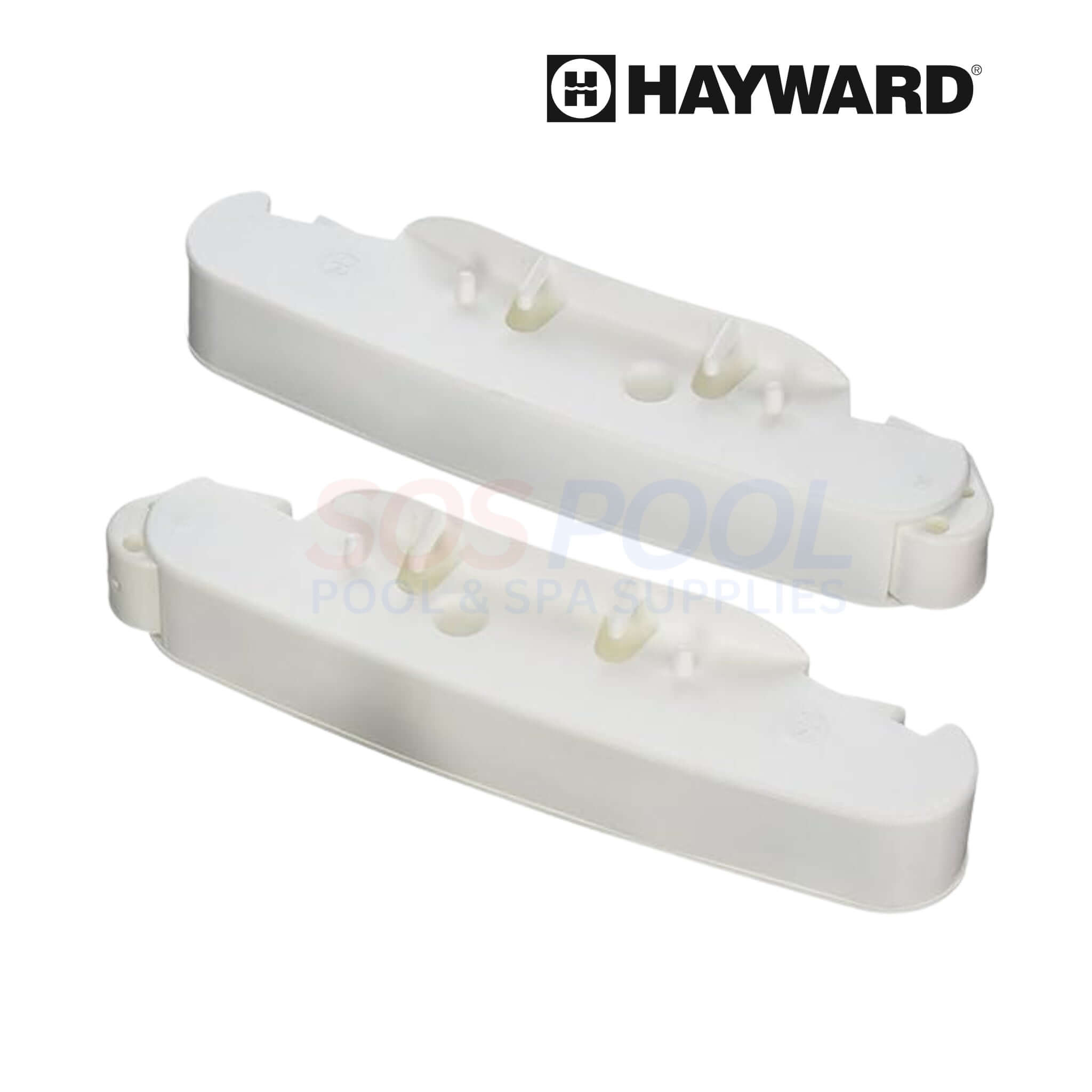

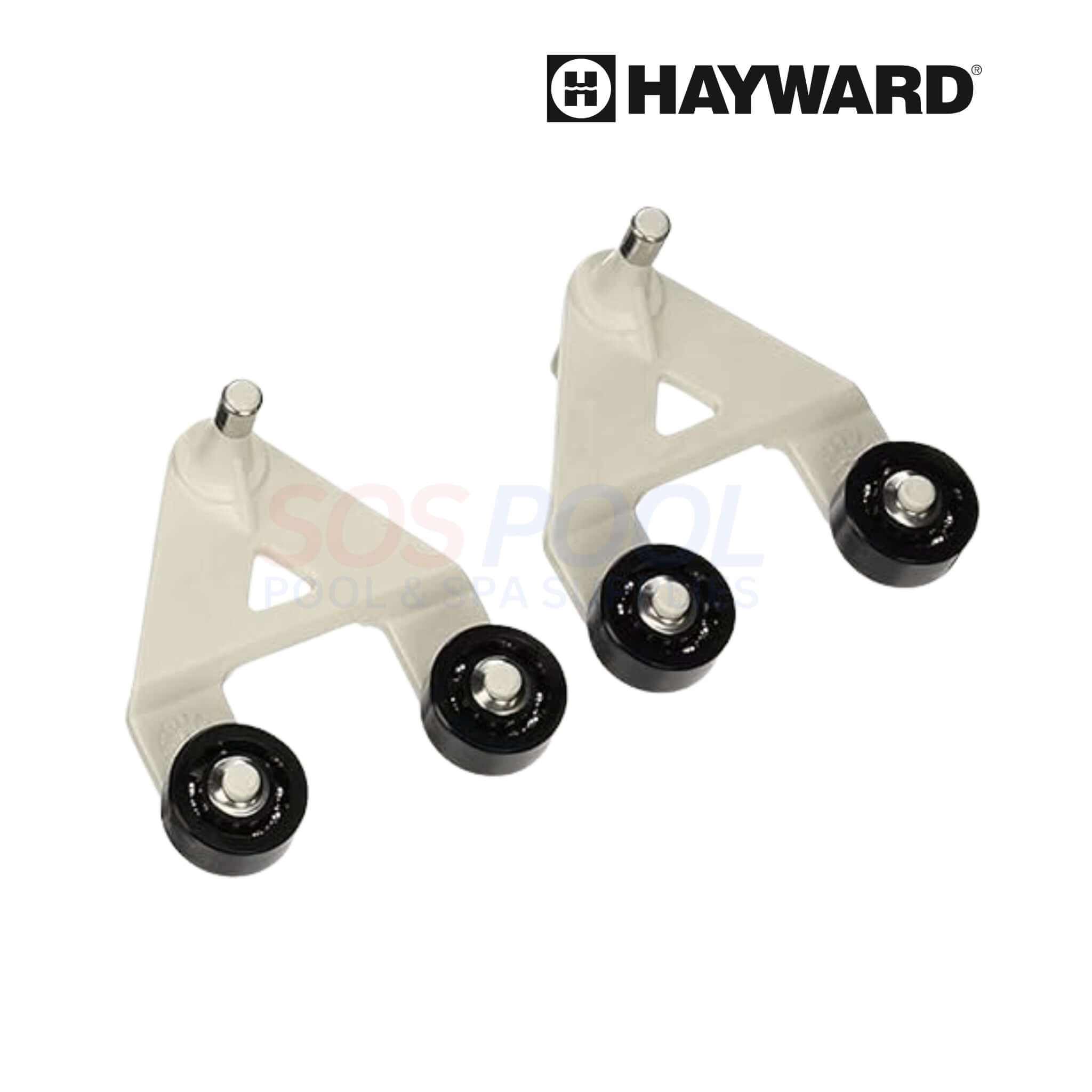

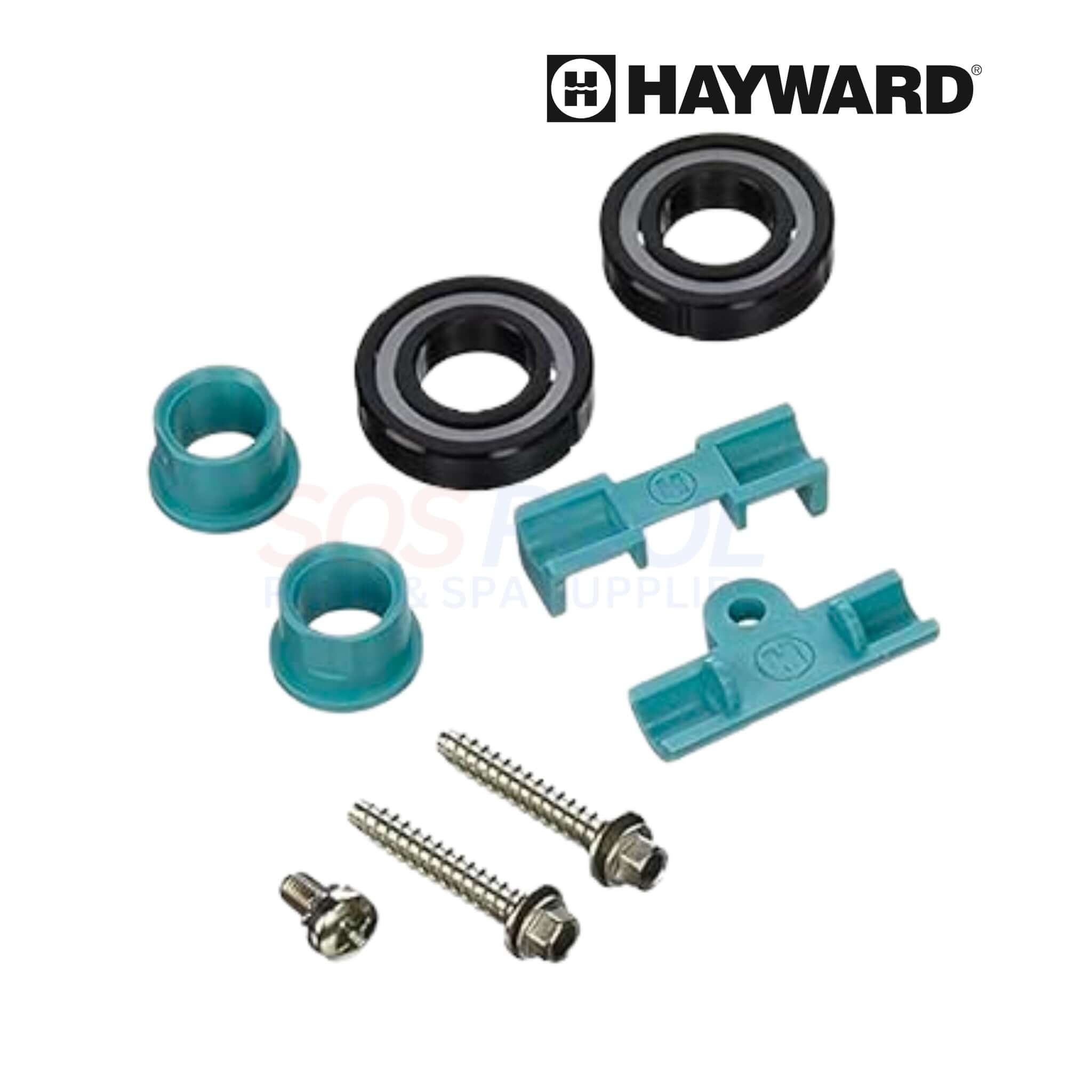

Durable Replacement Components: This kit includes high-quality A-frame and pod components, built to withstand regular use and extend the life of your pool cleaner, making it a reliable solution for long-term maintenance.
-
Easy Installation: Engineered for easy installation, this tune-up kit allows you to quickly restore your pool cleaner's efficiency, keeping your pool spotless with minimal downtime.
-
Compatible with Select Hayward Models: Specifically designed for certain Hayward models, this kit ensures a perfect fit, helping maintain optimal cleaning performance and extending the lifespan of your pool cleaning equipment.
- Hayward Navigator Pro Cleaners
- Hayward PoolVac XL Cleaners
- Hayward Navigator Cleaners
- Hayward PoolVac Ultra Cleaners
