Jandy 100 Sq. Ft. CS Cartridge Filter | CS100

Jandy CS100 Cartridge Pool Filter | 100 Sq. Ft.

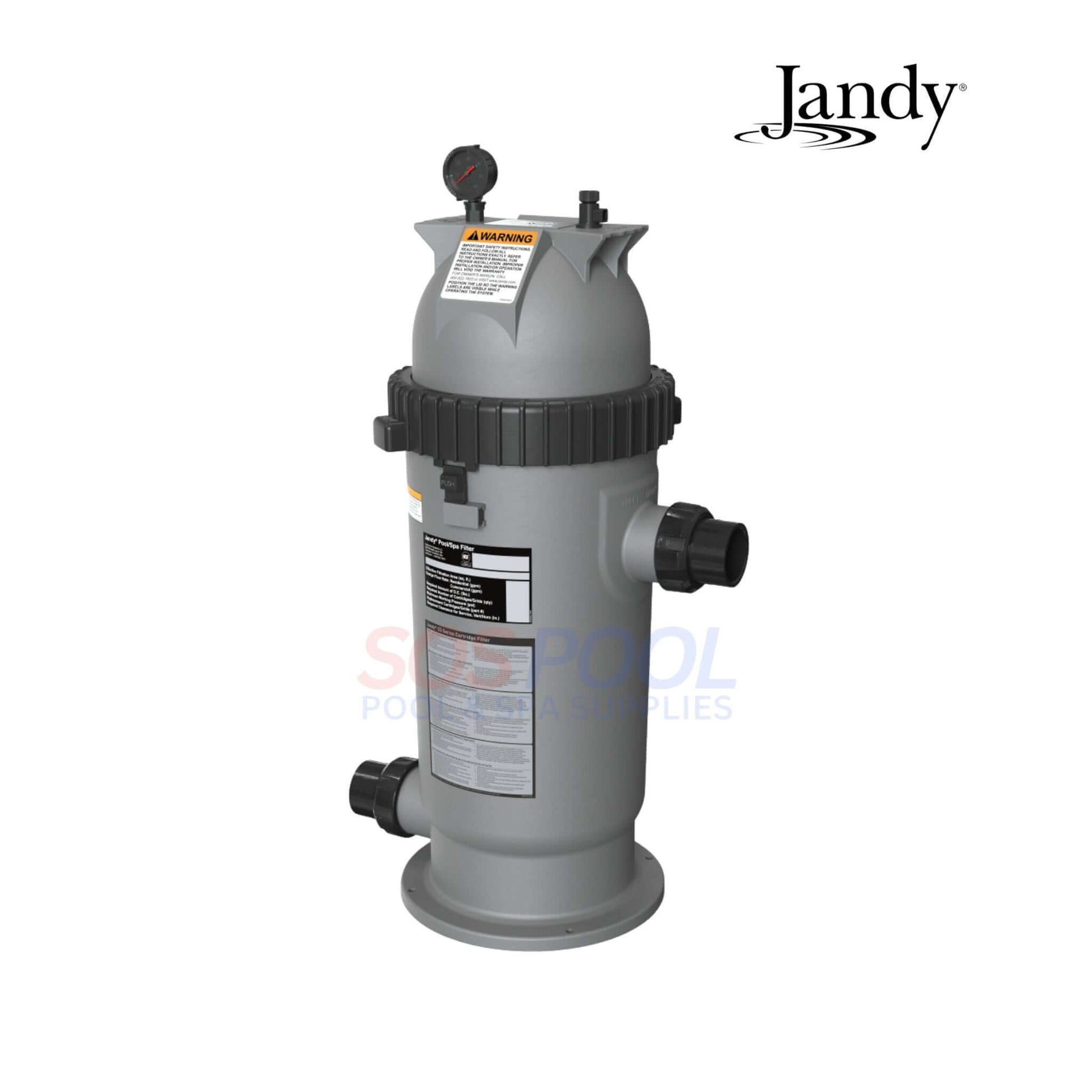

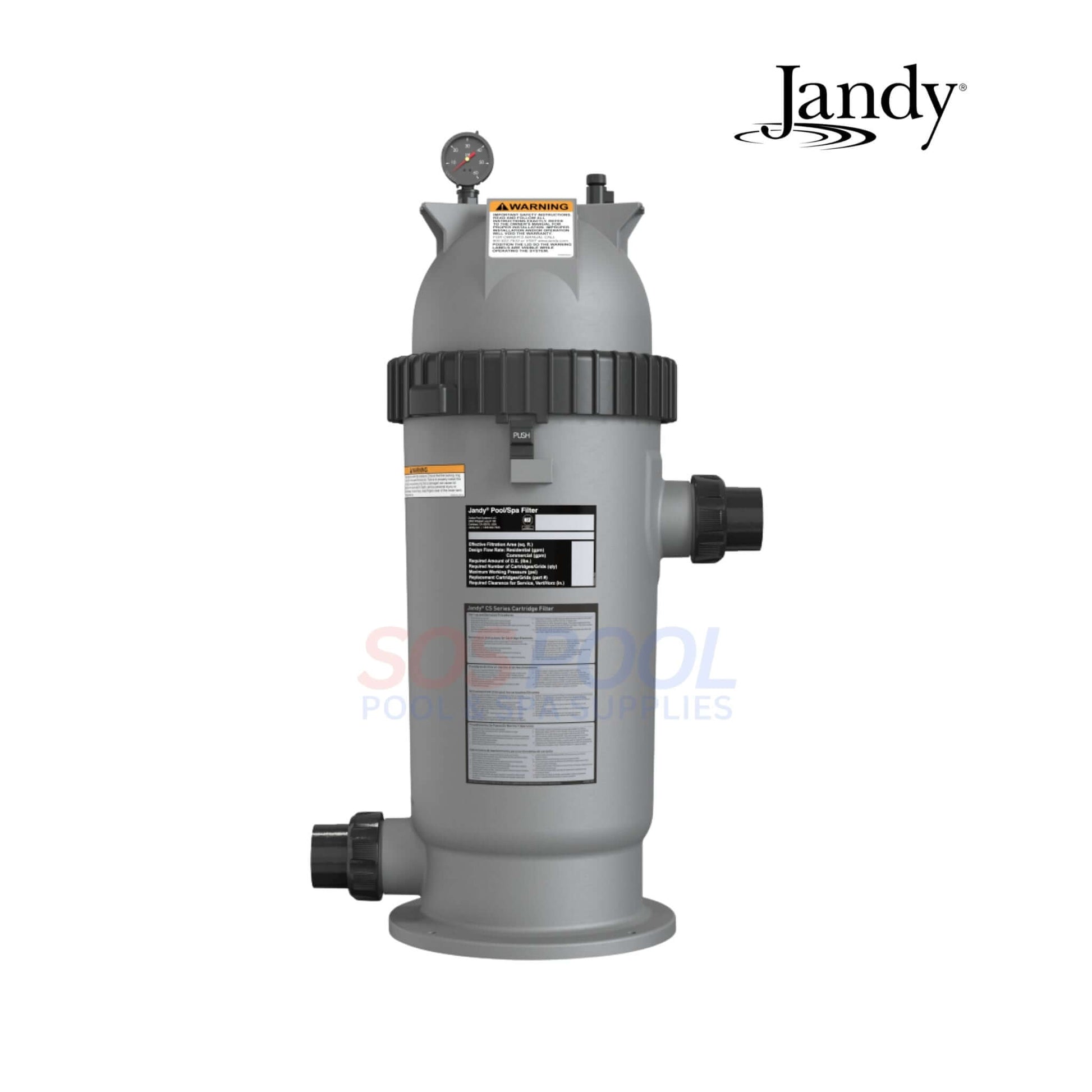

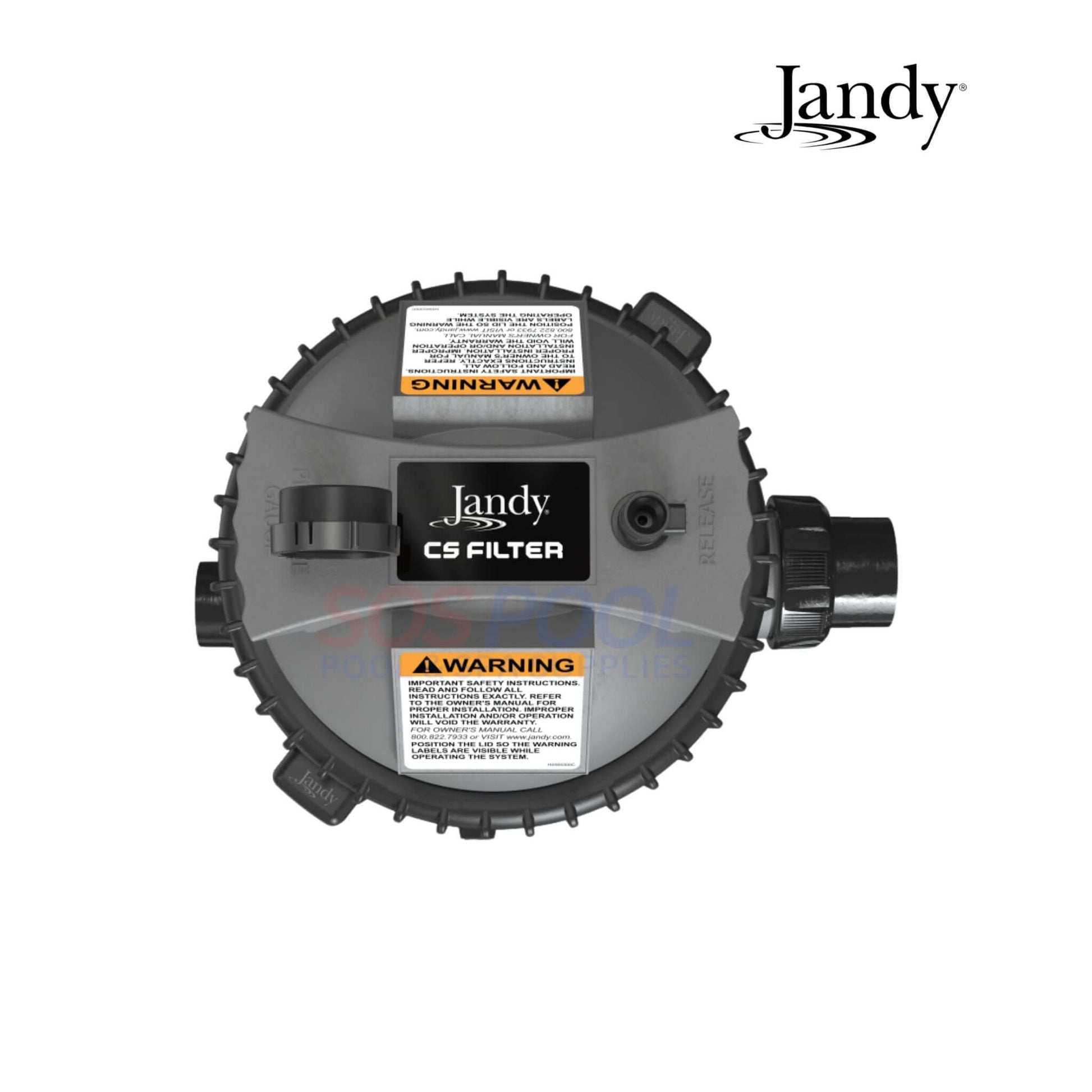

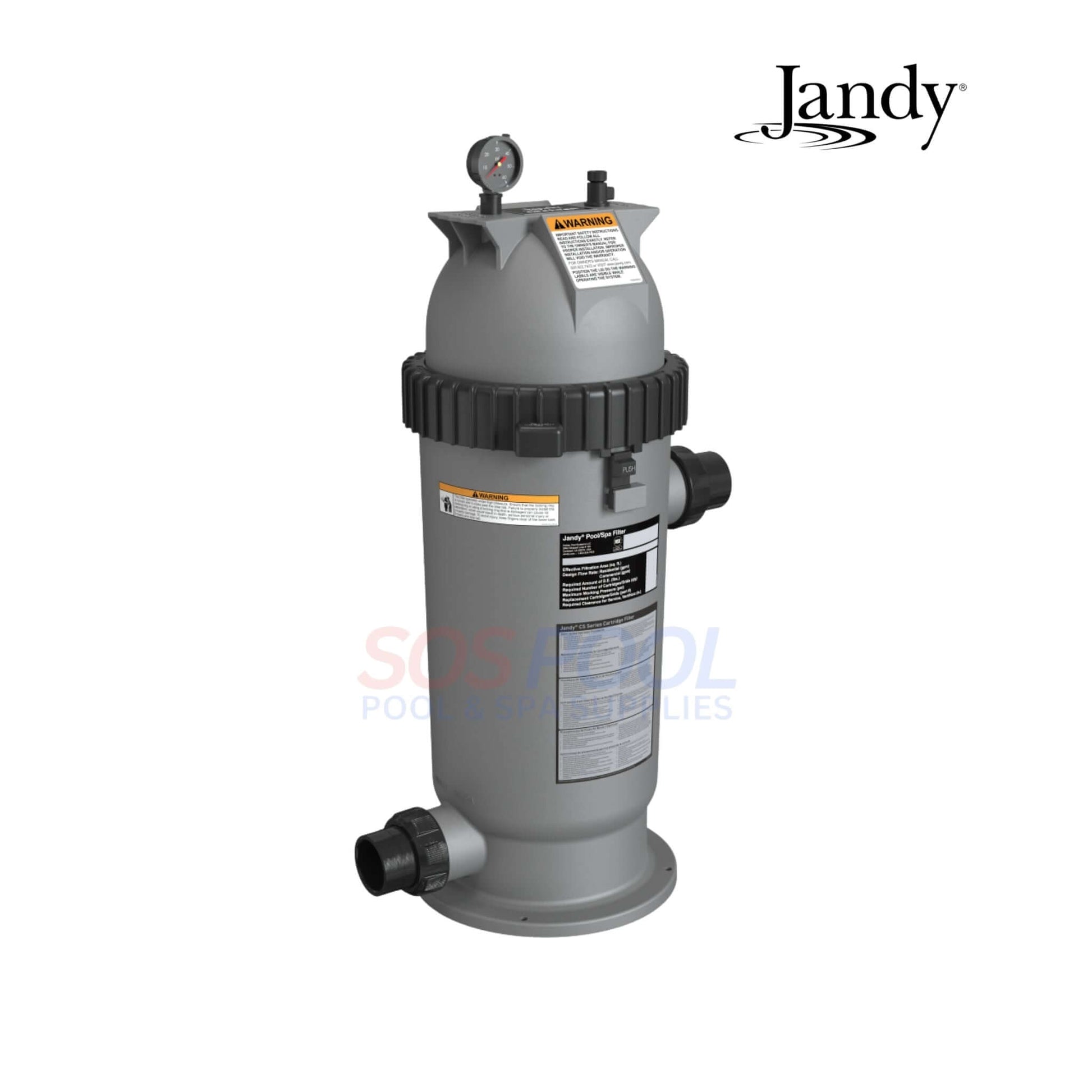

The Jandy® CS100 Single Cartridge Filter combines compact size with strong performance, making it ideal for smaller pools and spas. With a 100 sq. ft. filtration surface and maximum flow of 100 GPM, it effectively maintains clean, clear water even in limited installation spaces. The CS100 processes 36,000 gallons in six hours or 48,000 gallons in eight hours, ensuring consistent turnover and dependable water quality.

Designed with ease of service in mind, the CS100 includes an enlarged air relief valve, now twice as large for faster air purging. A removable locking ring provides full access to the o-ring for simple maintenance, while a clean/dirty indicator helps users know exactly when servicing is needed. Because the system uses a cartridge element, backwashing is eliminated — saving water and reducing upkeep time.

Durability is built into every component, from its thermoplastic body to oversized drain ports and ergonomic handles that make handling and servicing easier. Its compact 32 3/8" height and 20 1/8" diameter allow it to fit neatly onto tight equipment pads, and with Versa Plumb® compatibility, it integrates smoothly with other Jandy equipment for optimized hydraulic performance. With reliable construction and convenient maintenance features, the Jandy CS100 is engineered to keep pool water sparkling clear year after year.

Key Features of the Jandy CS100 Cartridge Pool Filter

• 100 Sq. Ft. Filtration Capacity: Provides dependable cleaning power sized for small pools and spas, keeping water fresh and clear.

• Strong Water Flow: Supports a maximum of 100 GPM and processes up to 48,000 gallons in eight hours for efficient circulation.

• Water-Saving Cartridge System: Eliminates backwashing, reducing water waste and simplifying pool maintenance.

• Easy Maintenance Access: Enlarged air relief valve and removable locking ring make servicing fast and convenient.

• Durable Thermoplastic Construction: Built tough to withstand outdoor exposure and daily operation.

• Built-In Clean/Dirty Indicator: Allows quick visual checks to determine when servicing is required.

• Ergonomic Handles & Large Drain Ports: Make filter handling, draining, and winterization straightforward.

• Compact & Versa Plumb® Ready: Designed for small pads while connecting seamlessly with Jandy systems for space efficiency.
