The CMP Pressure Test Kit, part number 25501-100-000, is a reliable and essential tool designed for testing the pressure in 2-inch pool plumbing systems. This kit includes a 2-inch spigot, socket adapter, and a pressure gauge, allowing you to accurately check for leaks and ensure that your pool system is operating at optimal pressure levels. It's easy to use, requiring only basic tools and PVC glue for installation, making it an excellent choice for both professional pool technicians and DIY pool owners.
-
Essential Pressure Testing Tool: The CMP Pressure Test Kit 25501-100-000 is designed for accurately testing the pressure in 2-inch pool plumbing systems, helping to identify leaks and ensure optimal system performance.
-

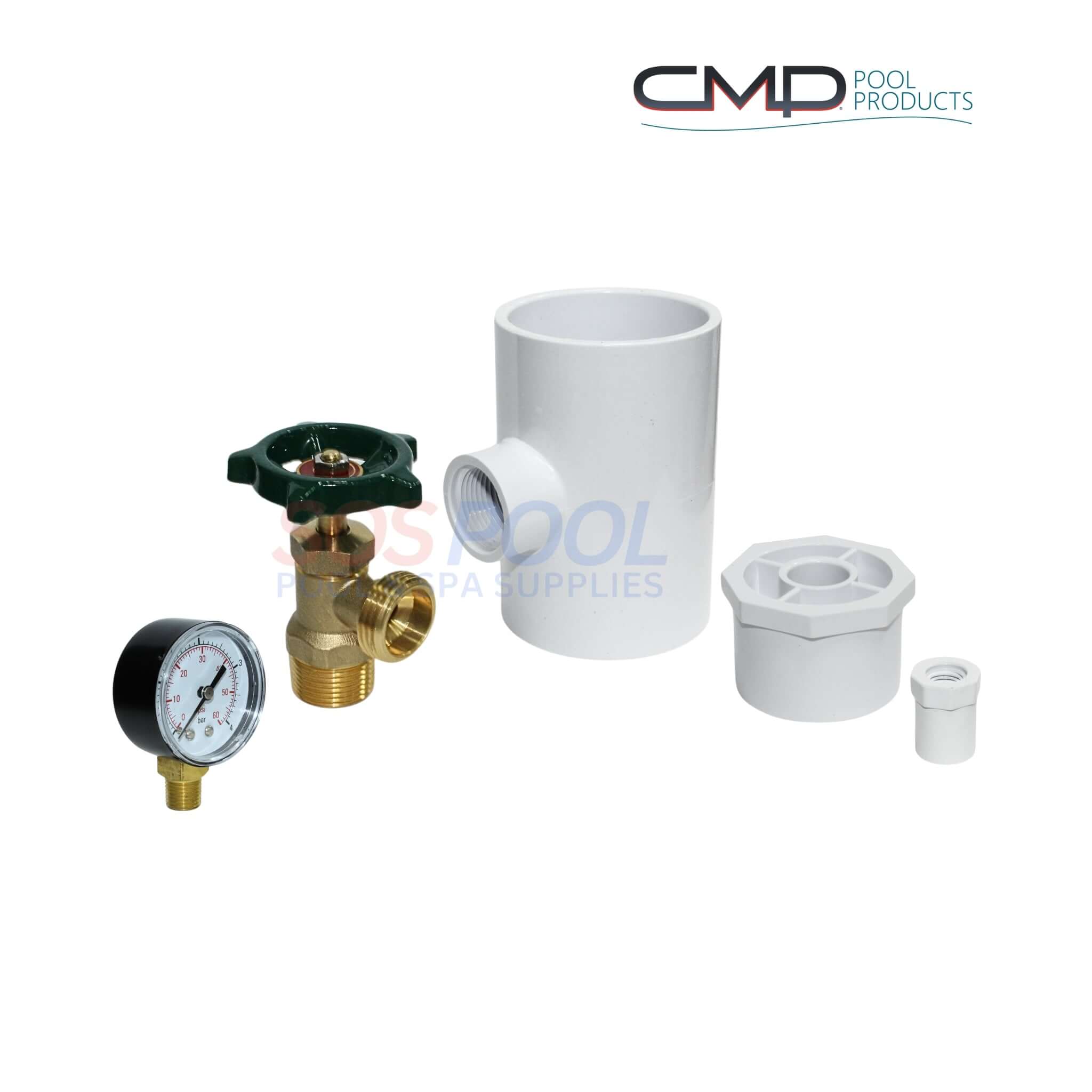

Comprehensive Kit Components: This kit includes a 2-inch spigot, socket adapter, and pressure gauge, providing everything needed to conduct thorough pressure tests on your pool system.
-
Easy to Use: With straightforward installation requiring only basic tools and PVC glue, this kit is user-friendly, making it ideal for both professional pool technicians and DIY pool owners.
-
Reliable and Accurate: The kit is designed to deliver precise pressure readings, ensuring that your pool plumbing system operates safely and efficiently, preventing potential issues caused by improper pressure levels.

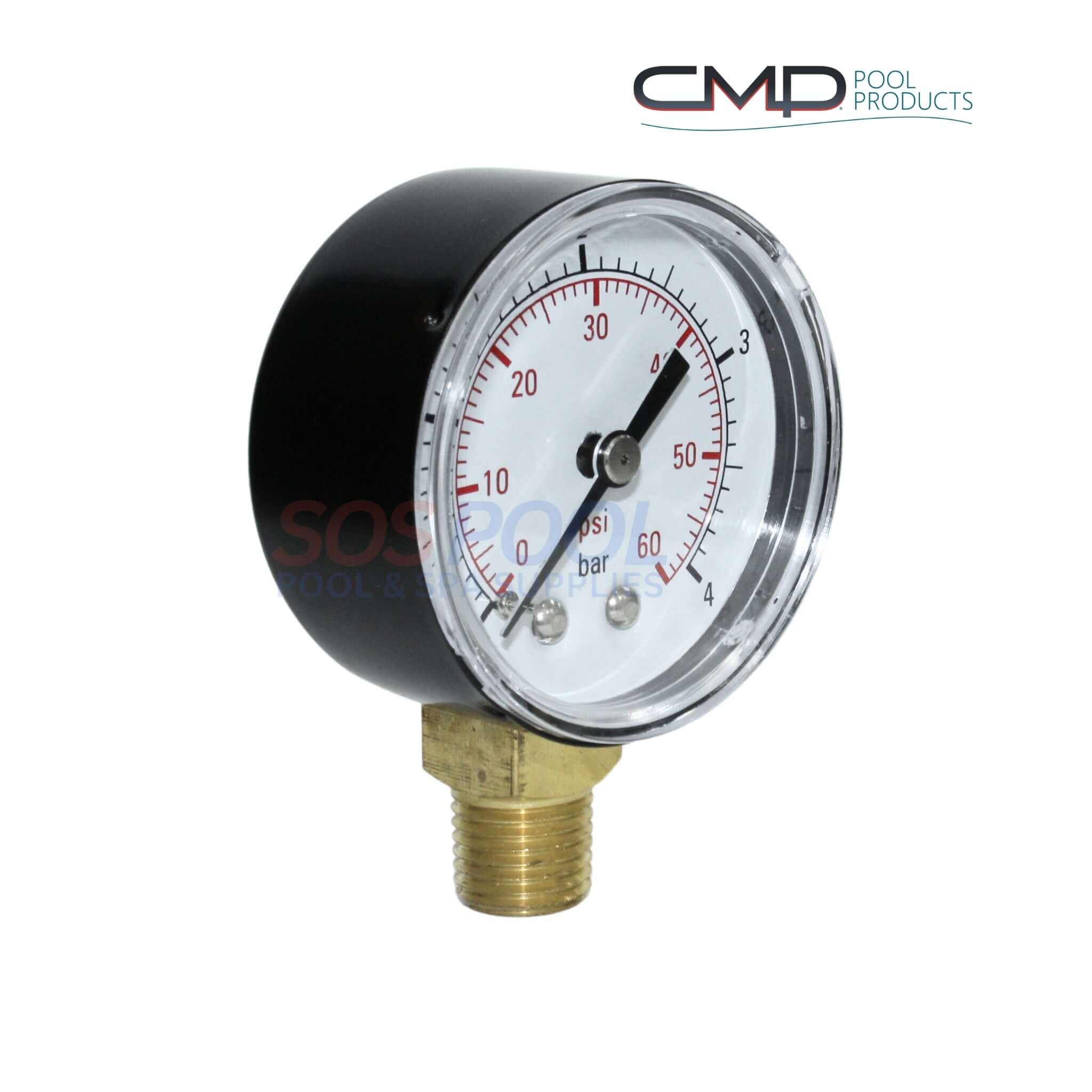

- (1) Pressure Gauge

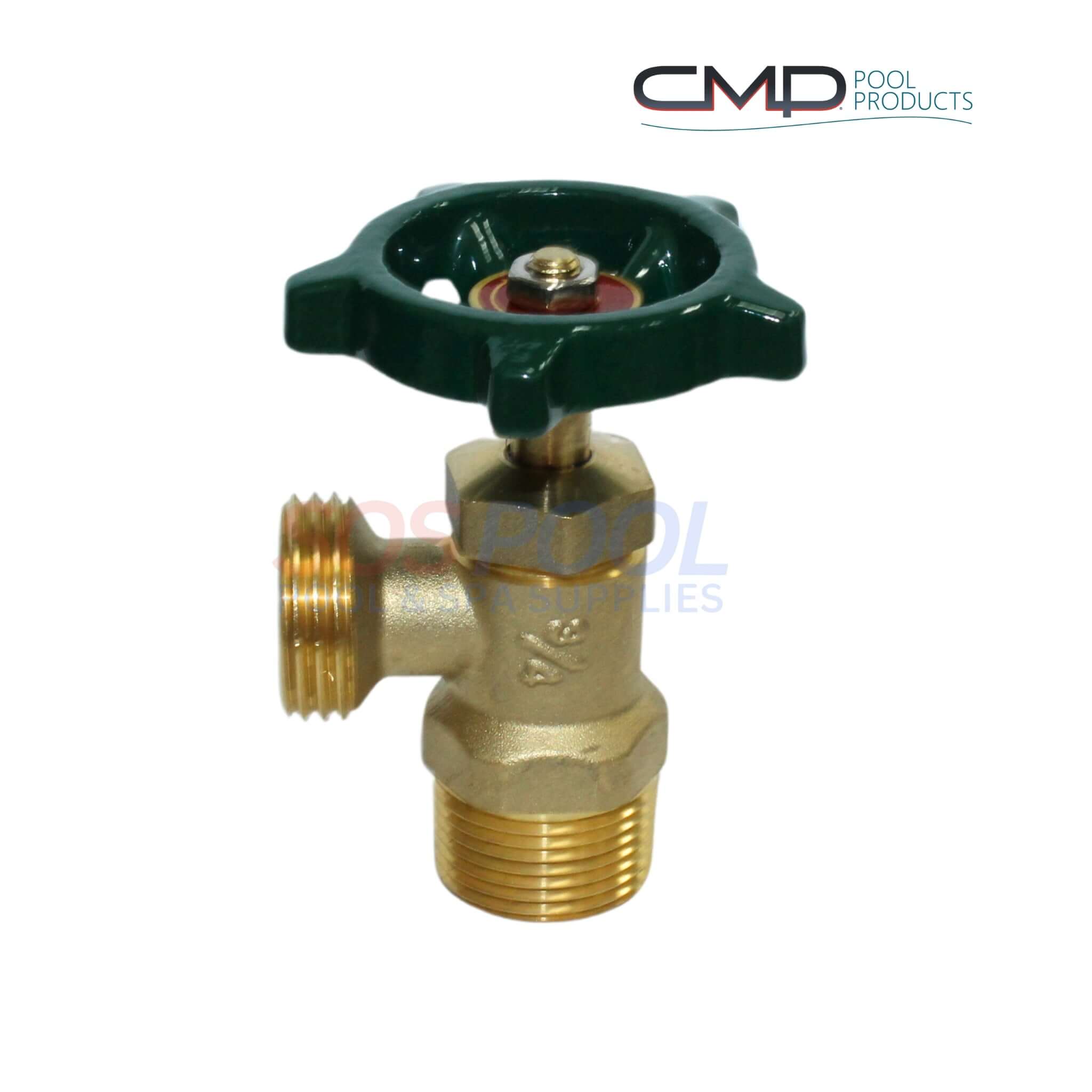

- (1) Standard Garden Hose x 3/4 NPT Brass Spigot

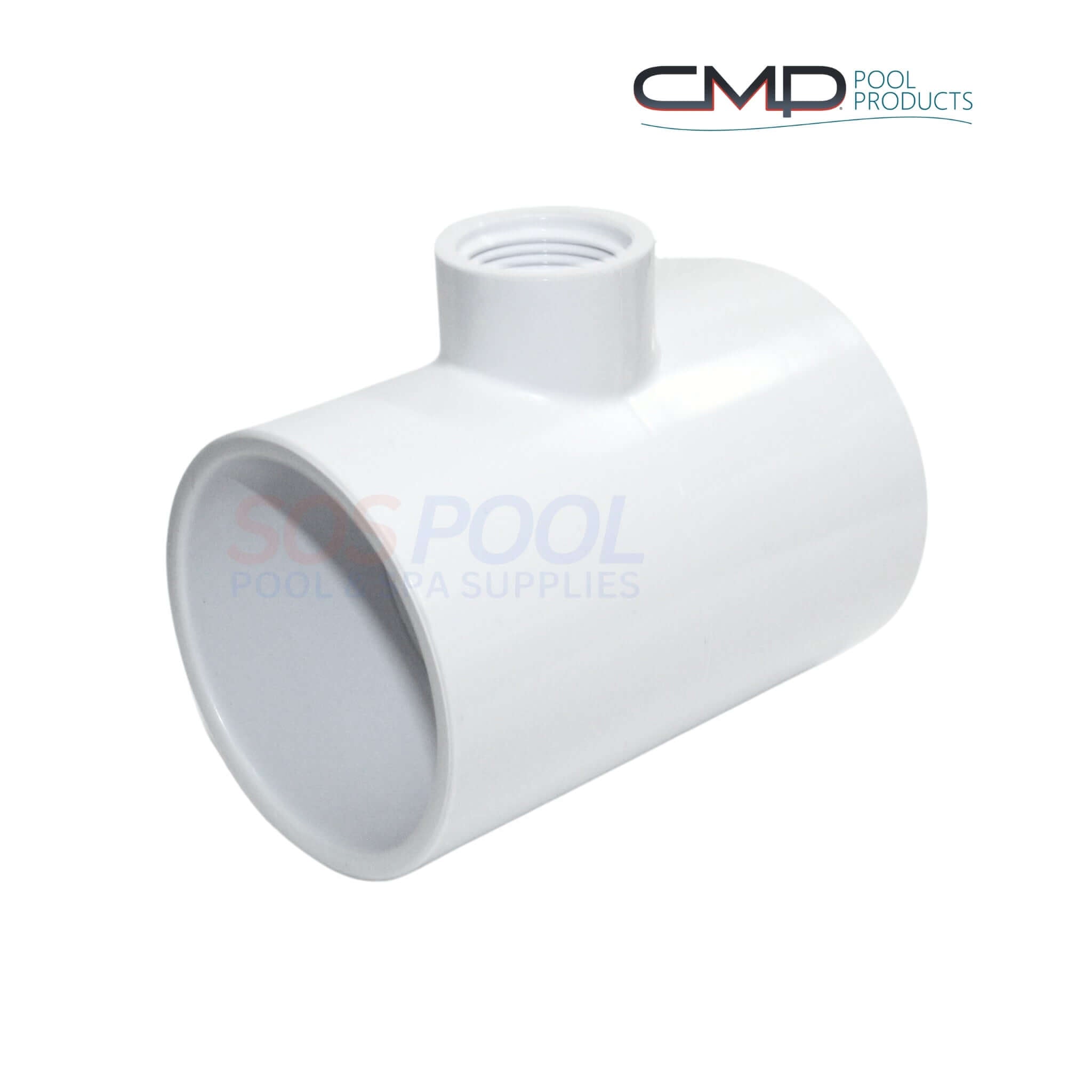

- (1) 2" Socket x 2" Socket x 3/4" NPT Main Body

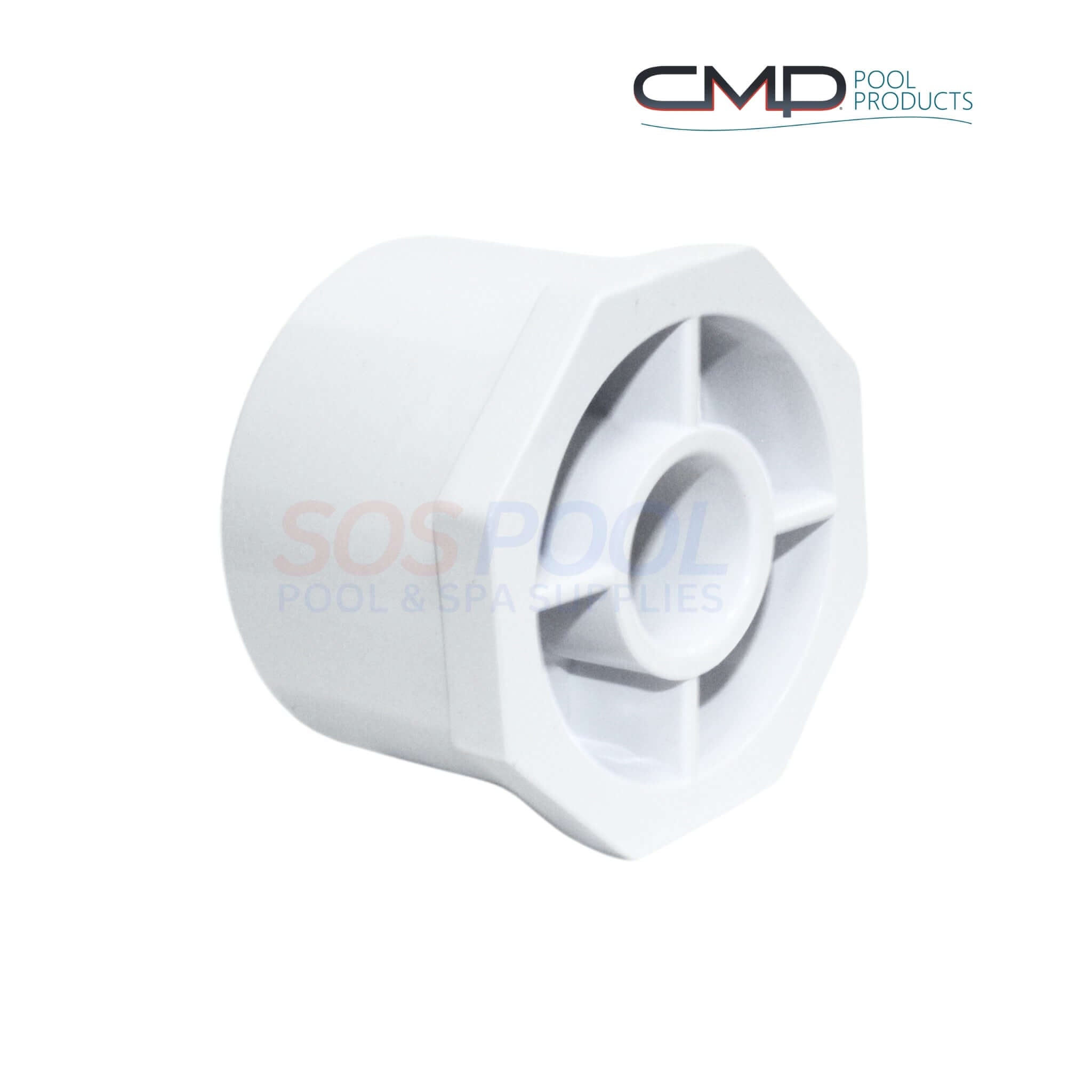

- (1) 2" Spigot x 1/2" Socket Adapter

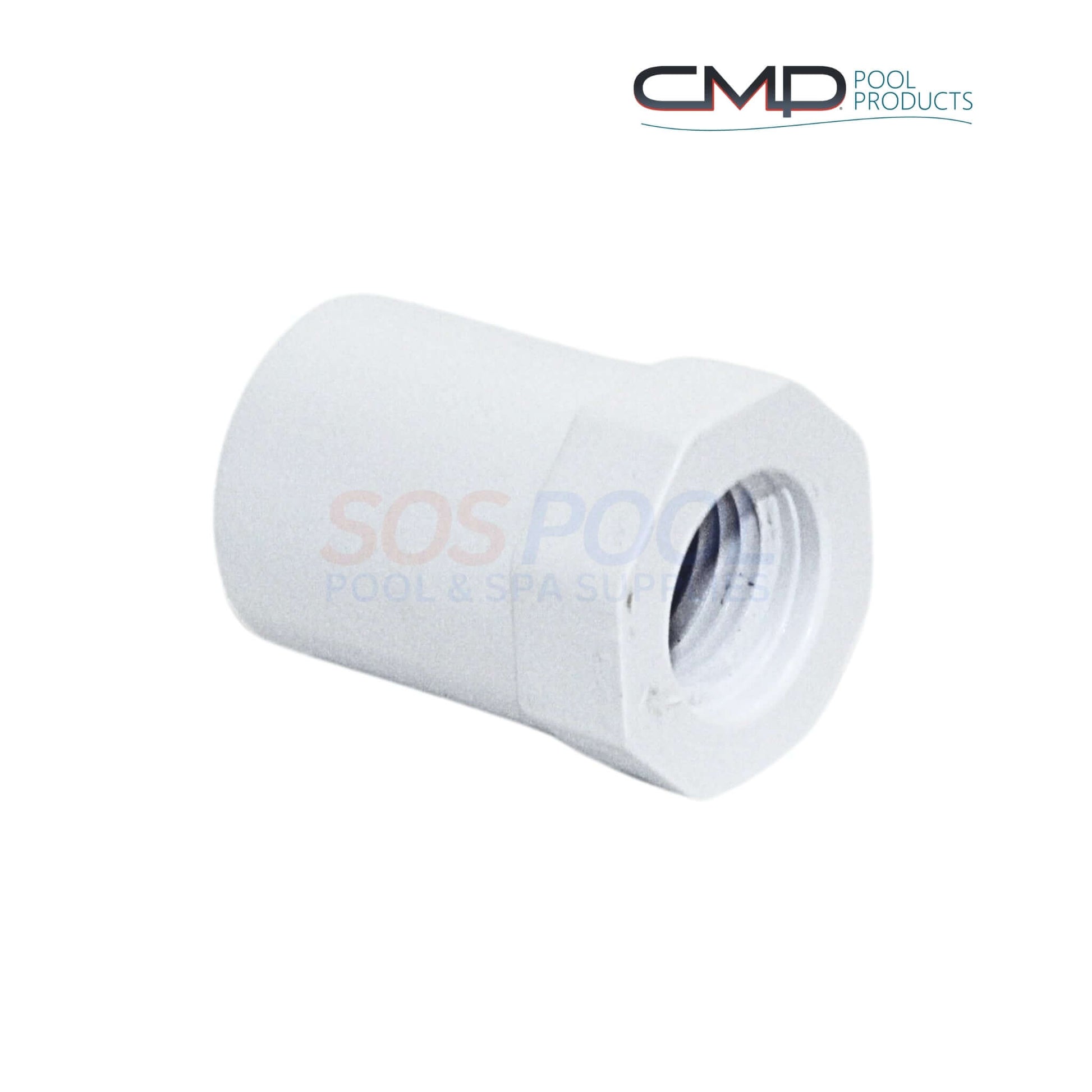

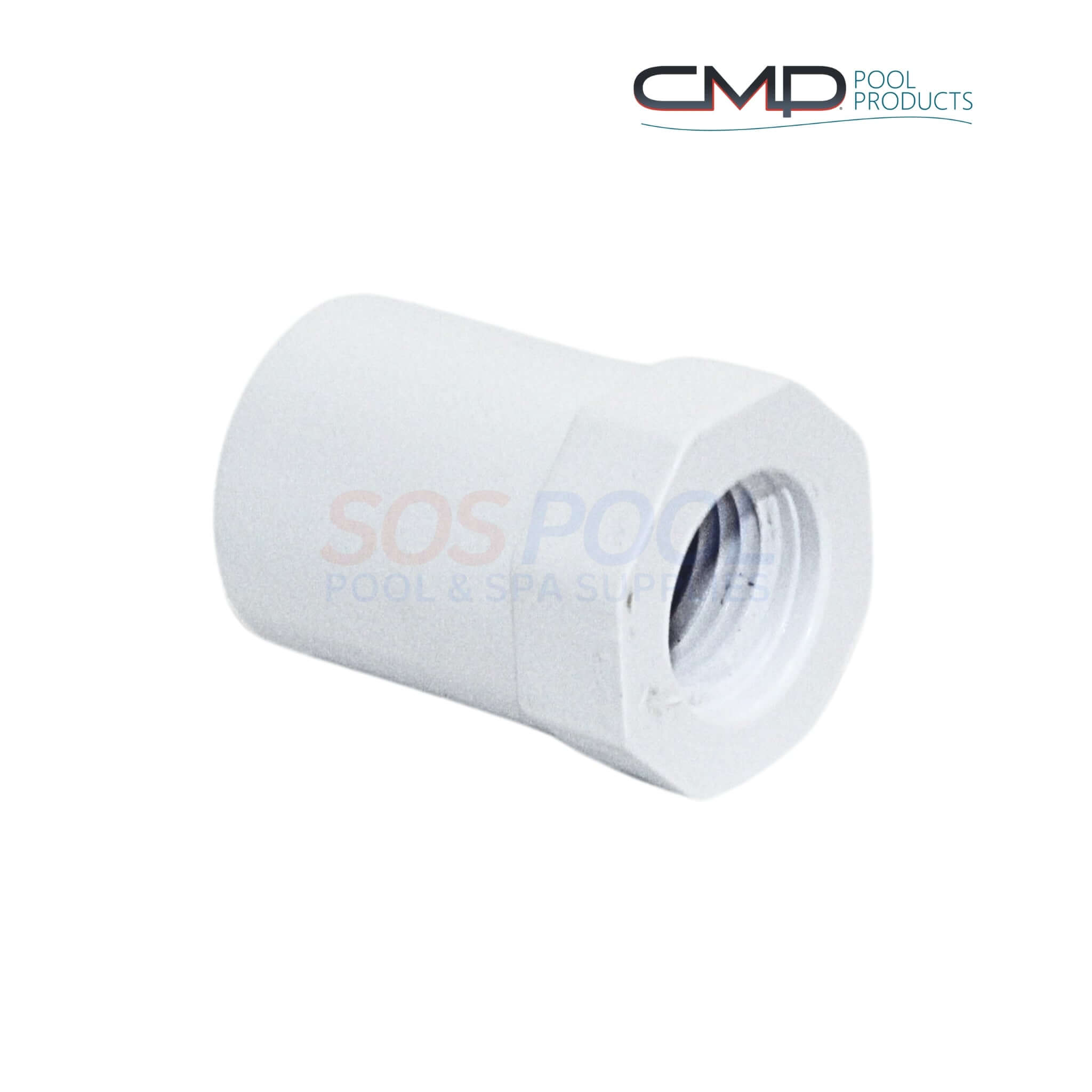

- (1) 1/2" Spigot x 1/4" NPT Adapter
- Use PVC glue to glue the 2” Spigot x 1/2” Socket Adapter into either 2” socket of the Main Body.
- Use PVC glue to glue the 1/2” Socket x 1/4” NPT Adapter into the 1/2” socket of the 2” Socket x 1/2” Socket Adapter.
- Wait for all glue to dry.
- Wrap threads of the Pressure Guage and Faucet with plumbers tape before threading them into the plastic parts
- Attach a garden hose to the Faucet outlet.
- The Faucet can be used as a pressure release valve.
