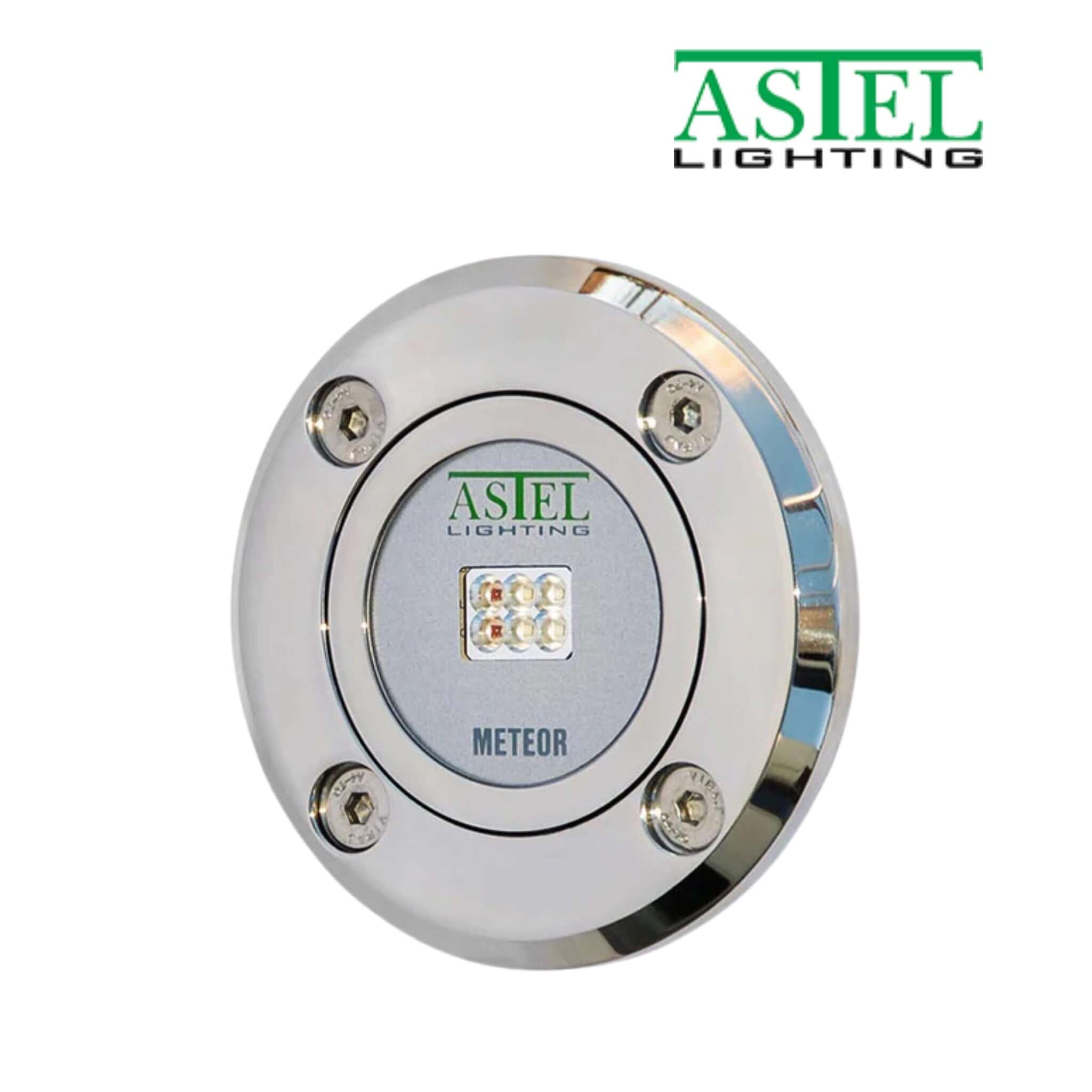

Astel Meteor Ultra-Thin Underwater LED Pool Lights

Astel METEOR Series Surface-Mount Ultra-Thin LED Pool Lighting

The Astel METEOR Series is an ultra-slim, UL® certified underwater LED lighting system engineered for streamlined installation and high-performance illumination. Featuring a fully integrated driver housed within the fixture, the METEOR series installs directly onto flat pool surfaces without niche housings or extensive structural modifications. Measuring only 0.39 inches thick and requiring a maximum wall penetration of 2/5 inch for cable routing, these lights provide impressive brightness while maintaining a clean architectural appearance.

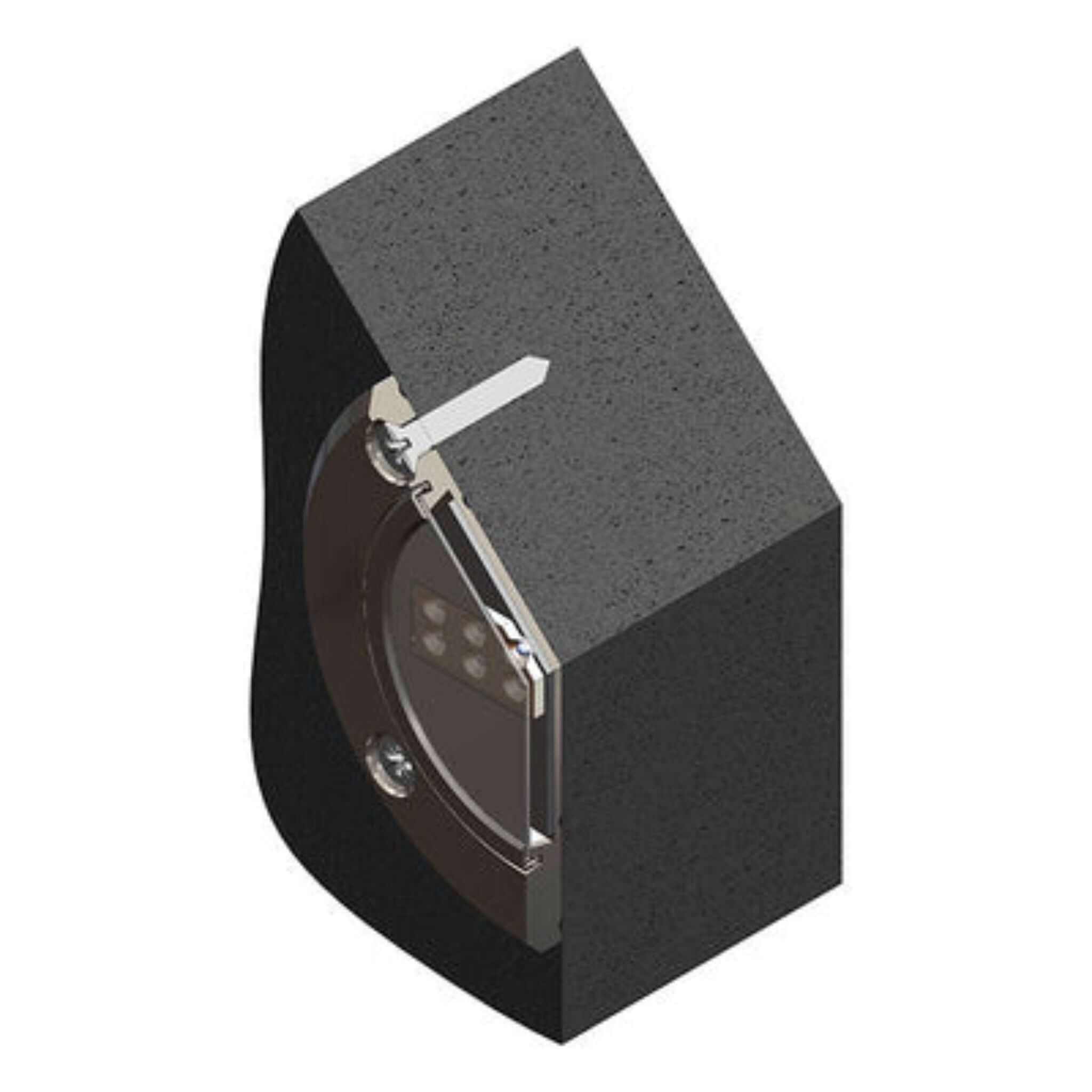

Each METEOR fixture is constructed from stainless steel SAE316L and rated IP68 for complete waterproof protection. The surface-mount configuration enables installation below the waterline using four mounting screws and a small cable entry opening, significantly reducing construction time in both new pool builds and retrofit projects.

Available Models & Performance Specifications

METEOR LSR0640

Power Consumption: Max. 10 W
Luminous Flux: Up to 950 lumens (cool white)

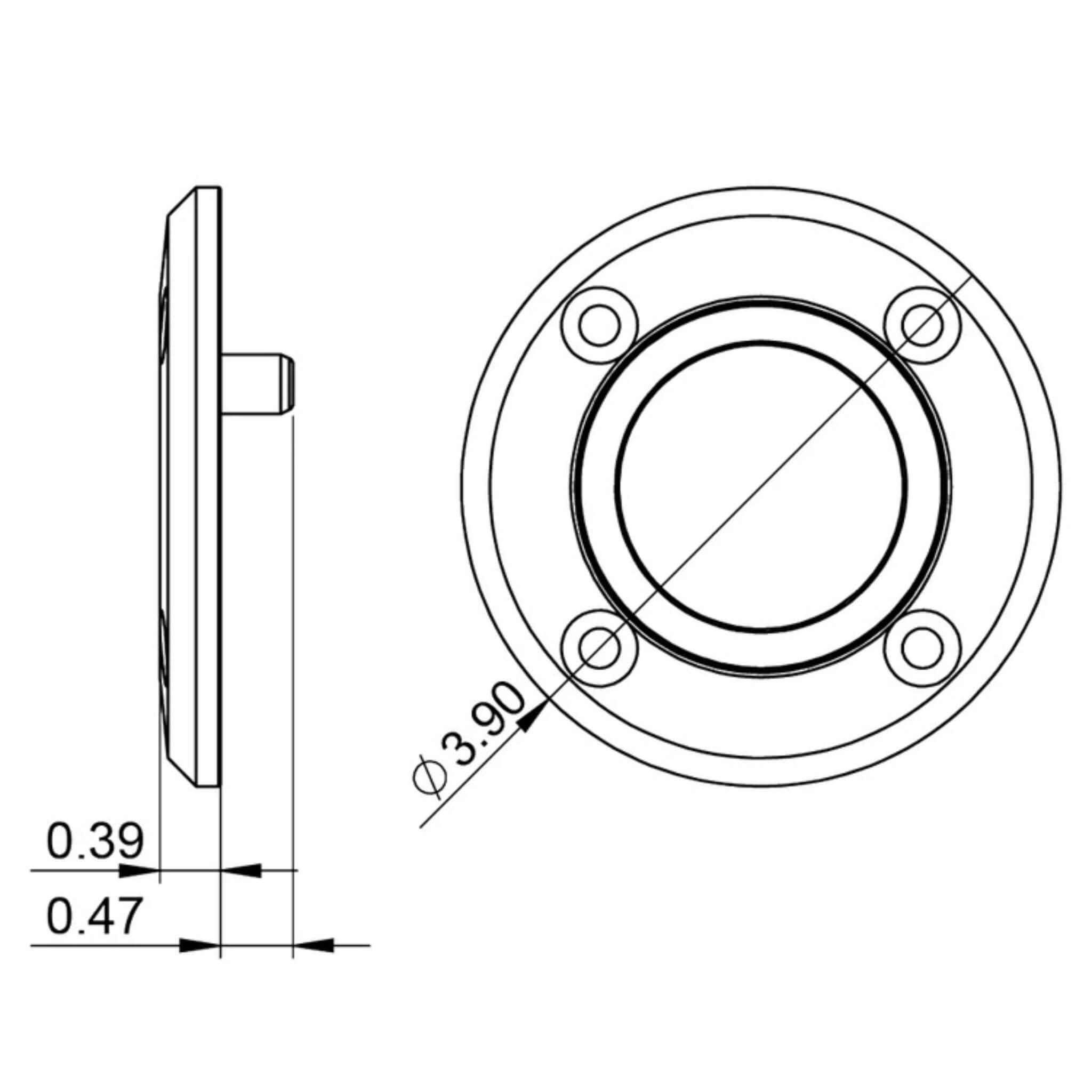

Dimensions: Ø3.9 × 0.39 inches
Weight: 0.88 lbs
Color Options: White, Blue, Green, RGB, WGB, RGBW

METEOR LSR1280

Power Consumption: Max. 18 W
Luminous Flux: Up to 1,900 lumens (cool white)
Dimensions: Ø4.69 × 0.39 inches
Weight: 1.32 lbs
Color Options: White, Blue, Green, RGB, WGB, RGBW

METEOR LSR36240

Power Consumption: Max. 51.5 W
Luminous Flux: Up to 5,700 lumens (cool white)
Dimensions: Ø5.47 × 0.39 inches
Weight: 1.76 lbs
Color Options: White, Blue, Green, RGB, WGB

Note: Maximum wattage values are based on models supplied with 6.56 ft cable lengths and may vary slightly depending on selected color configuration.

Advanced Control & Lighting Flexibility

Multi-color METEOR models support both manual color selection and automatic rainbow-spectrum transitions using a momentary switch. For complex installations, DMX512 compatibility allows synchronized operation, dimming control, and centralized lighting coordination across multiple units.

The integrated microprocessor-based electronics enable advanced brightness regulation and coordinated lighting effects, making the METEOR series suitable for both standalone installations and large-scale commercial pool lighting systems.

Engineering & Technical Specifications

• Power Supply: 12–24 Vdc, max. 840 mA at 12 Vdc or 410 mA at 24 Vdc

• Beam Angle: 60° standard or 100° wide distribution

• Optical Window: High-grade polycarbonate glass

• Operating Temperature: 14°F to 122°F

• Casing Material: Stainless Steel SAE316L

• Protection Rating: IP68 waterproof

Utilizing high-efficiency Cree LED technology and a precision optical window, the METEOR series achieves strong luminous output while maintaining efficient energy usage. The ultra-thin patented housing ensures flush aesthetics and versatile mounting capabilities for a refined underwater lighting presentation.

Key Advantages

• Ultra-slim 0.39 inch surface profile

• Requires only 2/5 inch wall penetration

• SAE316L stainless steel construction

• UL® certified LED underwater pool lighting

• RGB and multi-color configuration options

• DMX512 networking capability

• Designed for simple retrofit into finished pools
