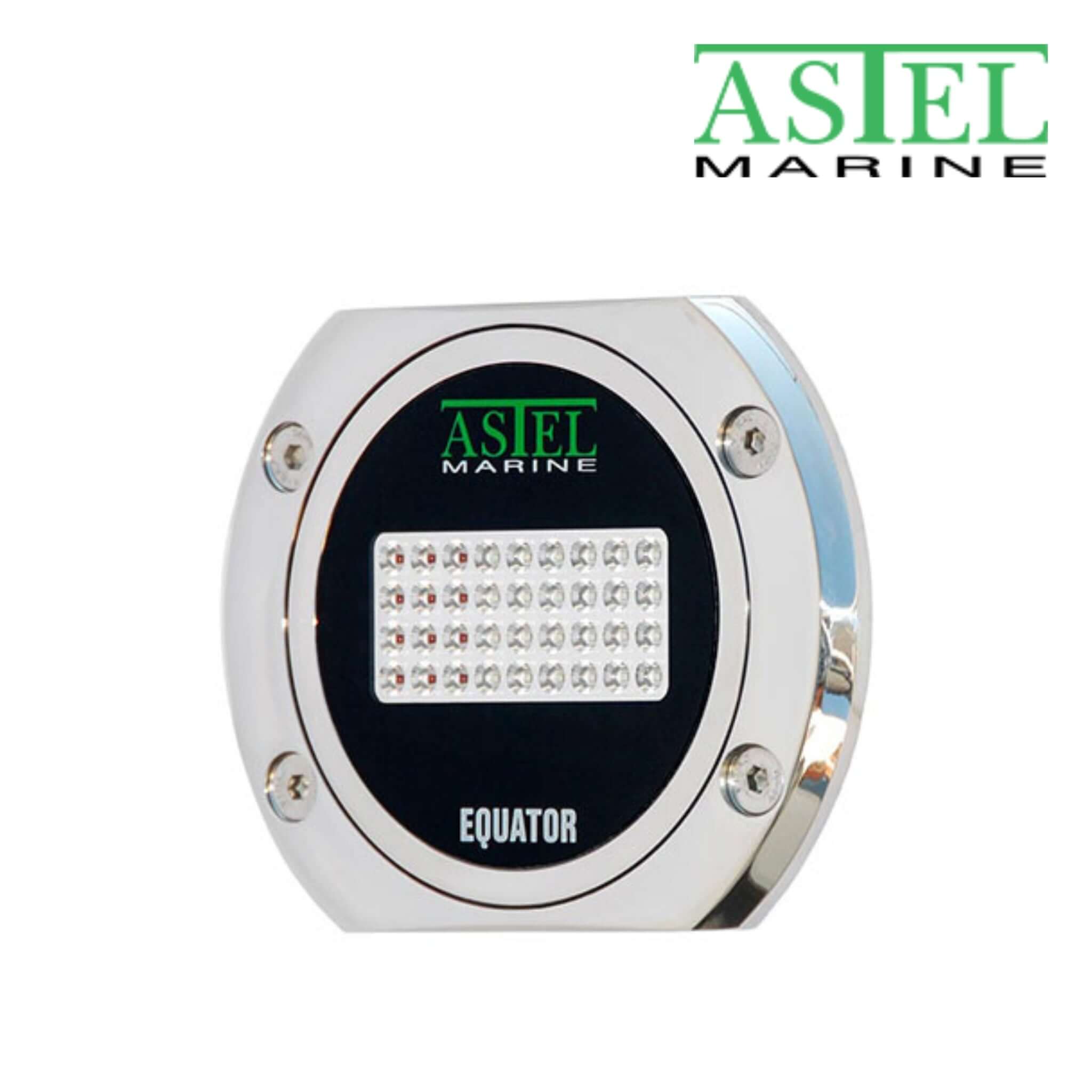

Astel Marine EQUATOR Series Ultra-Thin Underwater LED Lights
The Astel Marine EQUATOR Series delivers a sleek, ultra-low-profile surface-mount underwater LED lighting solution engineered for refined aesthetics and straightforward installation. Featuring an integrated driver and patented housing construction, EQUATOR fixtures mount directly to the stern or hull sides below the waterline with minimal penetration required. With a thickness of only 0.39 inches and a maximum through-hull opening of just 2/5 inch, these lights provide powerful underwater illumination while preserving hull strength and clean design lines.
Compact, marine-rated, and highly durable, the EQUATOR Series enhances nighttime visibility, produces vibrant underwater lighting effects, and elevates the overall appearance of your vessel.
Ultra-Thin Surface-Mount Construction
At only 0.39 inches thick, the EQUATOR Series maintains a streamlined, drag-minimizing profile that complements modern hull designs. The minimal 2/5 inch cable entry requirement reduces structural impact and simplifies retrofit installations.
The built-in driver system eliminates the need for external power components, ensuring a cleaner wiring setup and improved long-term operational reliability.
Available Models
EQUATOR MSR0640
Power Consumption: Max. 10W
Luminous Flux: Up to 1,200 lumens (white)
Dimensions: 3.9 × 2.72 × 0.39 inches
Weight: 0.66 lbs
Recommended Boat Length: Up to 25 ft
EQUATOR MSR1280
Power Consumption: Max. 18W
Luminous Flux: Up to 2,400 lumens (white)
Dimensions: 4.69 × 3.5 × 0.39 inches
Weight: 0.88 lbs
Recommended Boat Length: Up to 40 ft
EQUATOR MSR36240
Power Consumption: Max. 51.5W
Luminous Flux: Up to 7,200 lumens (white)
Dimensions: 5.47 × 4.29 × 0.39 inches
Weight: 1.32 lbs
Recommended Boat Length: 65 ft and over
Color Options
All EQUATOR Series models are offered in the following configurations:
Single Color: White or Blue
Multi-Color: RGB, WGB, or RGBW
This flexibility allows vessel owners to customize underwater lighting effects to match personal style, onboard events, or navigational visibility requirements.
Built for Harsh Marine Conditions
Constructed for long-term underwater performance, the EQUATOR Series withstands demanding marine environments while maintaining consistent brightness and efficiency. Its compact yet rugged design supports reliable operation beneath the waterline season after season.
Whether installed for functional underwater illumination or dramatic nighttime ambiance, EQUATOR lights deliver exceptional output in a refined, ultra-thin format.
Multi-Color Control & Rainbow Spectrum
Multi-color EQUATOR models allow both manual and automatic color transitions across the full rainbow spectrum. Using a simple momentary switch, users can adjust lighting effects to create dynamic underwater displays ideal for yachts, sport boats, and tenders.
Integrated Microprocessor & DMX512 Compatibility
Each multi-color model incorporates an internal microprocessor that enables synchronized control and dimming across multiple underwater lights. For advanced marine installations, the system supports DMX512 network integration for full-scale yacht lighting control.
Marine-Grade Housing Materials

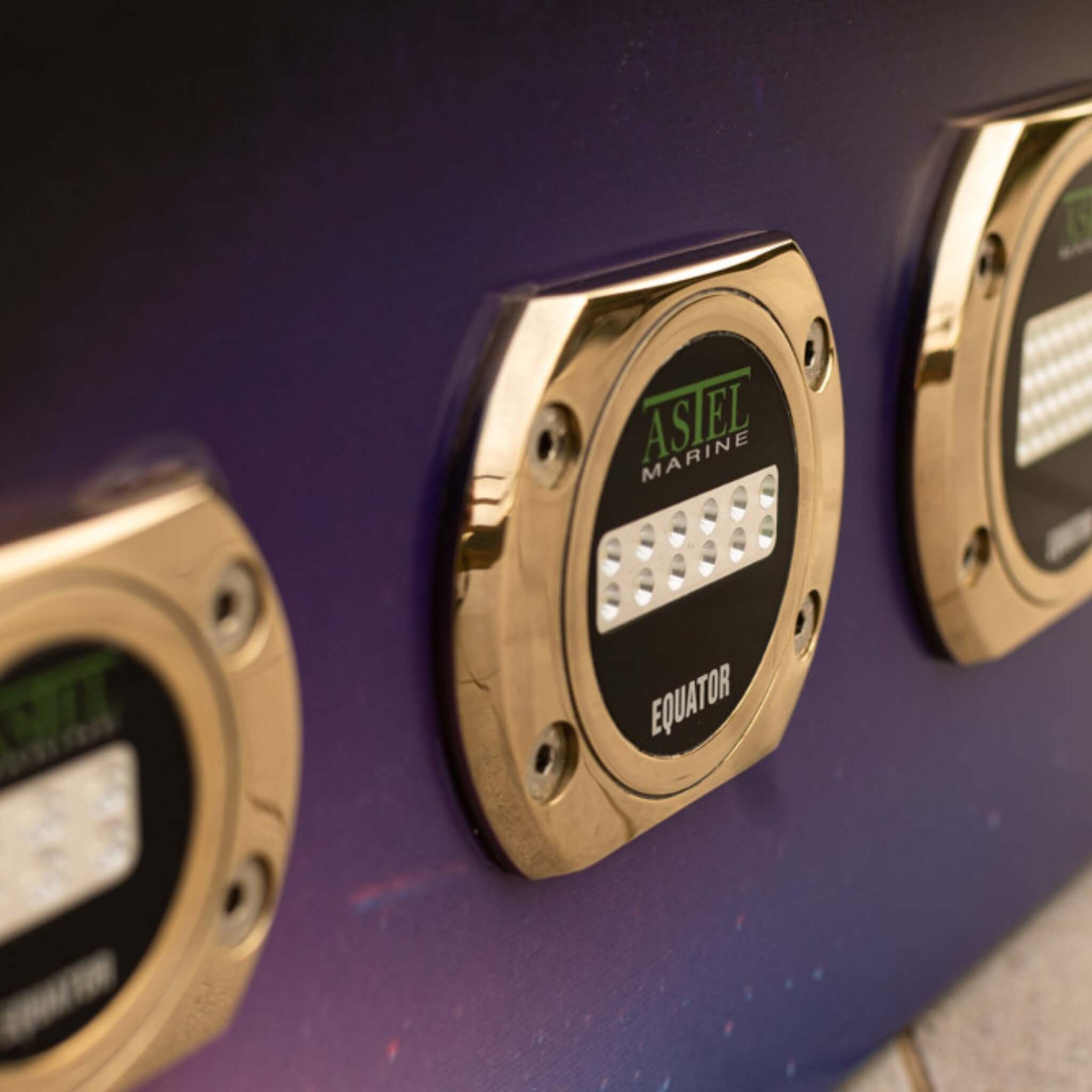

Available in aluminium bronze AB2 or stainless steel casings, EQUATOR underwater lights are engineered to resist corrosion and maintain structural integrity in harsh saltwater conditions.
High-Efficiency Cree LED System
Powered by high-output Cree LEDs and protected by a durable polycarbonate optical lens, the EQUATOR Series produces strong luminous performance with reduced energy consumption, making it suitable for vessels of various sizes.
Simplified Surface-Mount Installation
Each fixture installs using four mounting screws and a small cable entry hole, minimizing hull modification while preserving structural integrity and aesthetic appeal.
