Pentair IntelliBrite Architectural Series Spa Light Diagram & Part List

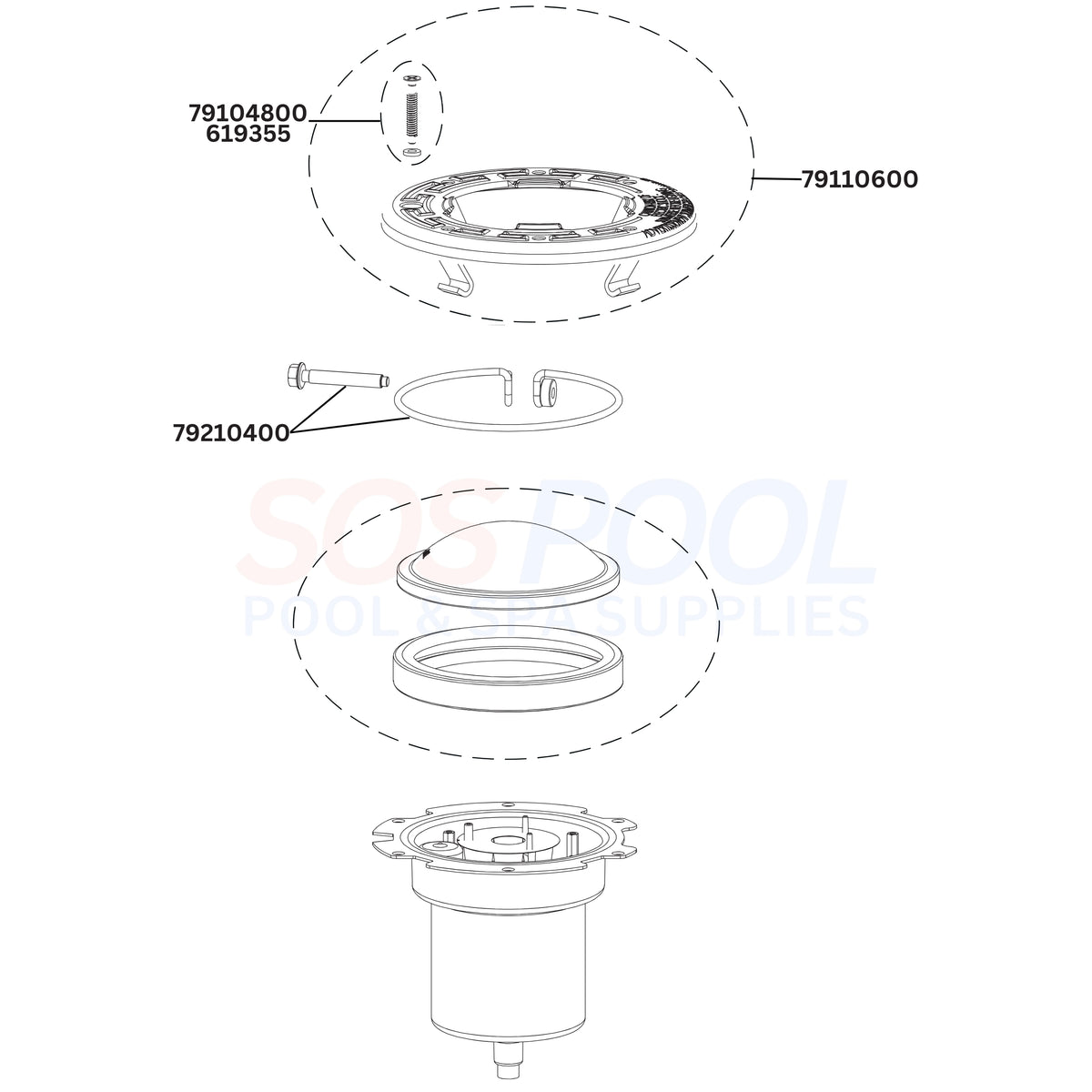

Use the illustrated parts diagram above to locate compatible IntelliBrite spa light components and shop genuine replacements below.

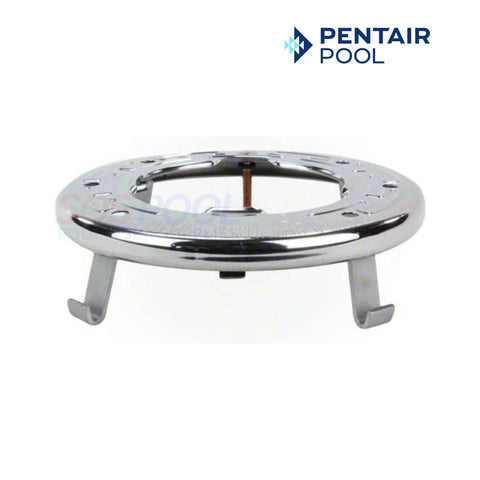

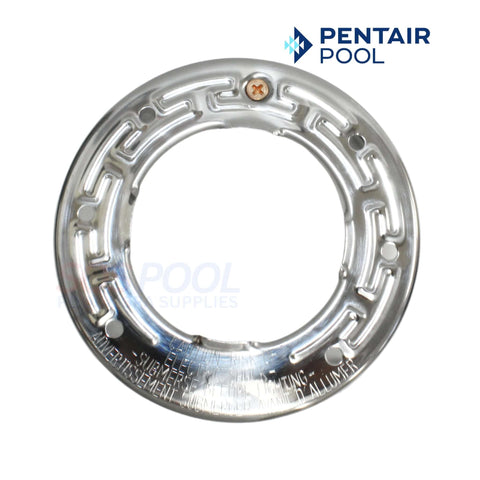

The 79111600Z Stainless Steel Face Ring fits SpaBrite and AquaLite spa lights and provides a clean, finished look.

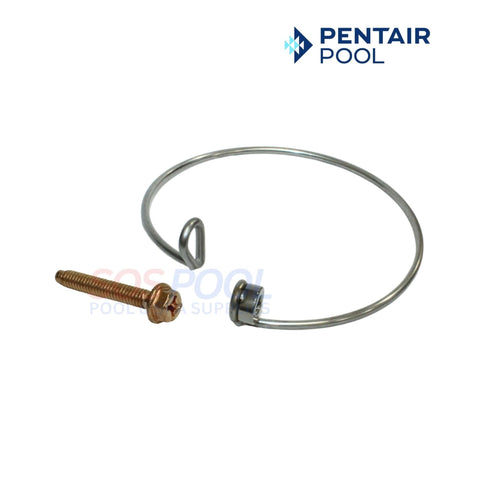

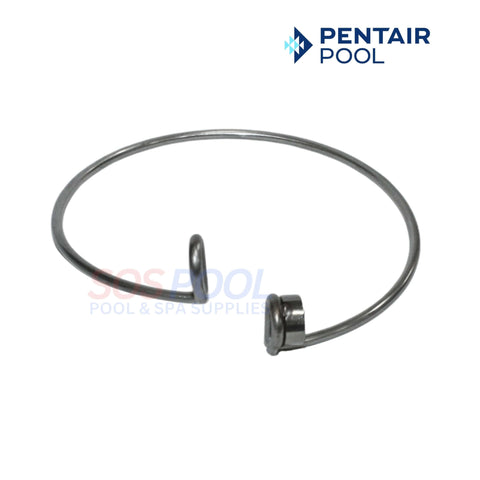

Ensure secure connections with the Pentair SpaBrite Wire Clamp Assembly 79210400, designed for reliable performance and safety.
We offer fast nationwide shipping on all IntelliBrite Architectural Spa Light parts.
Find face rings, clamp assemblies, and more replacement parts using our detailed diagram above.
